Turbine Shaft Speed (TSS) Sensor: Removal

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the main control. Refer to MAIN CONTROL .
  2. Disconnect the TSS sensor electrical connector.

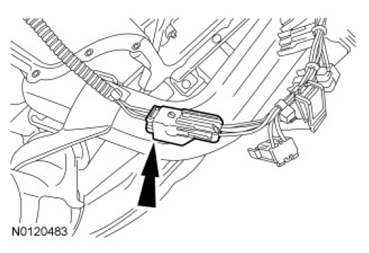

    Fig 1: Locating TSS Sensor Electrical Connector
    G07482884Courtesy of FORD MOTOR CO.
  3. Remove the bolt and remove the TSS sensor.

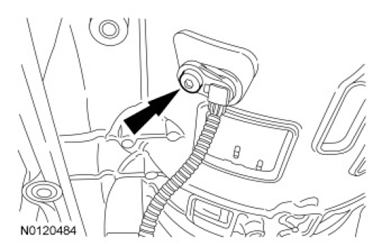

    Fig 2: Locating TSS Sensor Mounting Bolt
    G07482885Courtesy of FORD MOTOR CO.
