Oil Level Indicator and Upper Oil Level Indicator Tube

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

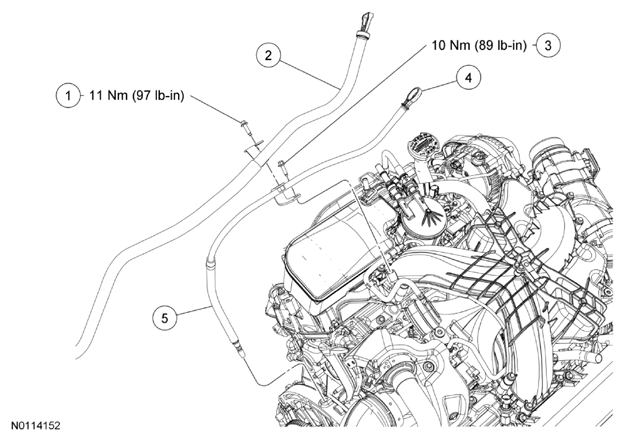

Fig 1: Transmission Oil Level Tube, Oil Level Indicator, Tube And Bolts With Torque Specifications
G08593247Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W500214 Transmission oil level tube bolt
2 7A228 Transmission oil level tube
3 W500214 Oil level indicator tube bolt
4 6750 Oil level indicator
5 6754 Oil level indicator tube
