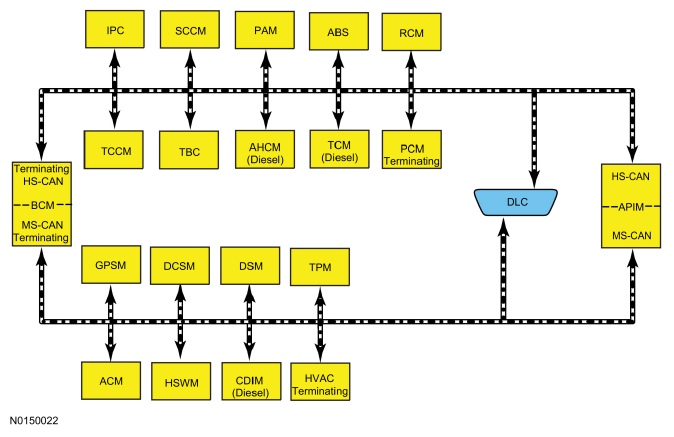

Network Topology - Vehicles With AM/FM/Single CD
WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.
| Module Name | Network Type | Termination Module |
|---|---|---|
| Accessory Protocol Interface Module (APIM) (if equipped) | HS-CAN | No |
| MS-CAN | No | |
| ABS module | HS-CAN | No |
| Audio Front Control Module (ACM) | MS-CAN | No |
| Auxiliary Heater Control Module (AHCM) (if equipped) | HS-CAN | No |
| Body Control Module (BCM) (gateway module) | HS-CAN | Yes |
| MS-CAN | Yes | |
| Circuit Deactivation Ignition Module (CDIM) (if equipped) | MS-CAN | No |
| Dual Climate Controlled Seat Module (DCSM) (if equipped) | MS-CAN | No |
| Driver Seat Module (DSM) (if equipped) | MS-CAN | No |
| Engine Off Natural Vacuum (EONV) (if equipped) | HS-CAN | No |
| Global Positioning System Module (GPSM) (if equipped) | MS-CAN | No |
| Heated Steering Wheel Module (HSWM) (if equipped) | MS-CAN | No |
| HVAC module | MS-CAN | Yes |
| Instrument Panel Cluster (IPC) | HS-CAN | No |
| Parking Aid Module (PAM) (if equipped) | HS-CAN | No |
| PCM | HS-CAN | Yes |
| Restraints Control Module (RCM) | HS-CAN | No |
| Steering Column Control Module (SCCM) | HS-CAN | No |
| Trailer Brake Control (TBC) module (if equipped) | HS-CAN | No |
| Transfer Case Control Module (TCCM) (if equipped) | HS-CAN | No |
| Transmission Control Module (TCM) (if equipped) | HS-CAN | No |
| Tire Pressure Monitor Module (TPM) | MS-CAN | No |
Vehicles with the optional premium audio with touchscreen have an Infotainment Controller Area Network (I-CAN) that is not connected to the Data Link Connector (DLC). The IPC operates as the gateway for modules on the Infotainment Controller Area Network (I-CAN) to communicate with the scan tool over the HS-CAN.
