Service Action Icons

WARNING: This page is about a different car, the 2013 Ford F-550 Super Duty, 2013 Ford F-450 Super Duty, 2013 Ford F-350 Super Duty, and 2013 Ford F-250 Super Duty. However, it is still accessible from the selected car via links, so may be relevant.

Service action icons may be used to add information regarding the required action. Refer to SYMBOLS GLOSSARY .

Location symbols show the location of a component or system on the vehicle.

G08055772

Example of service action icons pointing to highlighted components

G08055767

Movement arrows and service action icons show three dimensional or rotational movements.

G08055775

Color-coding and service action icons show application of sealer, lubricant, weight, tape or cleaning liquid.

G08055771

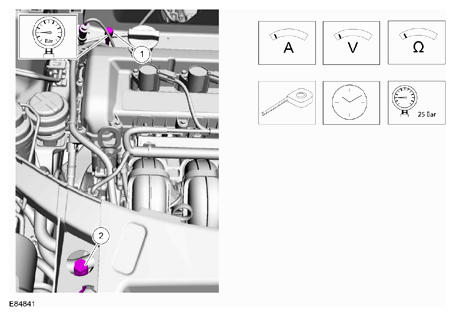

Measurement symbols provide the information required to perform a specific measurement. These symbols may include specific values.

G08600275
