Door Check Arm - Rear, SuperCab and SuperCrew: CrewCab

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Right side shown in illustration, left side similar.

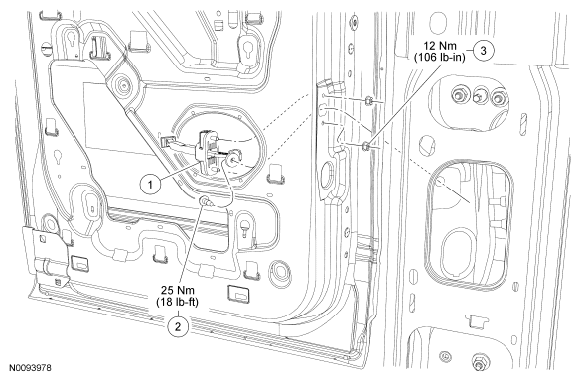

Fig 1: Door Check Arm Replacement Components With Torque Specifications -- Rear, CrewCab

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	162700	Rear door check arm
2	W707375	Rear door check arm-to-body screw
3	W712741	Rear door check arm-to-door nut
