Door Check Arm - Front: Notes
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

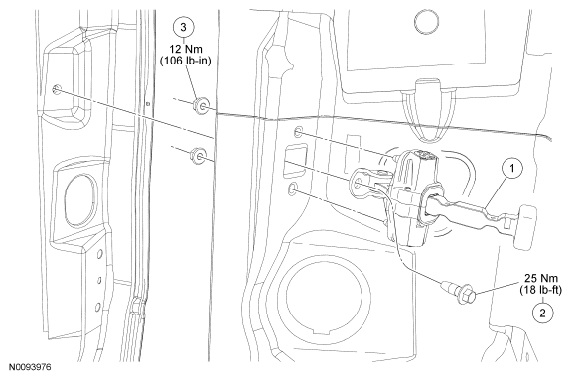

Right side shown in illustration, left side similar.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
152700 |
Front door check arm |
| 2 |
W707375 |
Front door check arm-to-door screw |
| 3 |
W712741 |
Front door check arm-to-body nut |
