Door - Rear, SuperCab: Notes
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

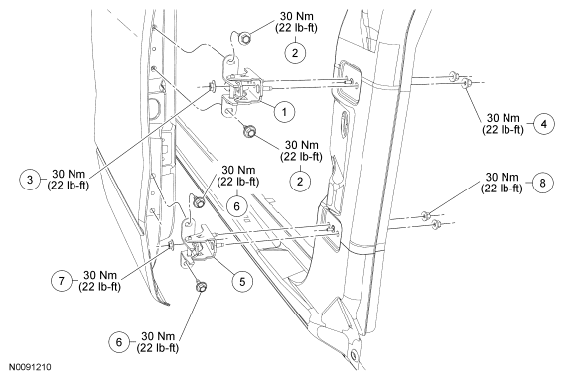

Right side shown in illustration, left side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 26800 | Rear door upper hinge |
| 2 | W709544 | Upper rear door hinge-to-rear door bolts |
| 3 | W709361 | Upper rear door hinge-to-body nut |
| 4 | W709361 | Body-to-upper rear door hinge nut |
| 5 | 26800 | Lower rear door hinge |
| 6 | W709544 | Lower rear door hinge-to-door bolts |
| 7 | W709361 | Lower rear door hinge-to-body nut |
| 8 | W709361 | Body-to-lower rear door hinge nut |
