Door - Front: Notes
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

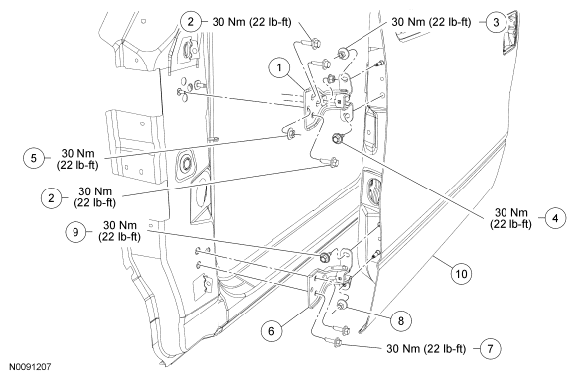

Right side shown in illustration, left side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 22800 RH/22801 LH | Front door upper hinge |
| 2 | W708880 | Front door upper hinge-to-body bolts |
| 3 | 22810 | Front door upper hinge-to-door nut |
| 4 | W708877 | Front door upper hinge-to-door bolt |
| 5 | N621941 | Front door upper hinge-to-body nut |
| 6 | 22810 RH/22811 LH | Front door lower hinge |
| 7 | W708877 | Front door lower hinge-to-body bolt |
| 8 | N806564 | Front door lower hinge-to-door nut |
| 9 | W708877 | Front door lower hinge-to-door bolt |
| 10 | 20124 RH/20125 LH | Front door |
