Component Location

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

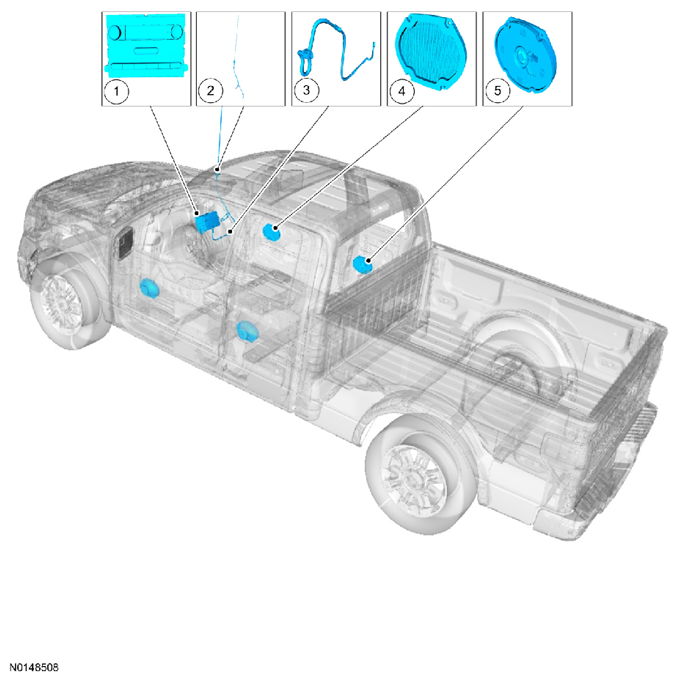

Fig 1: Identifying Information And Entertainment System Components

Courtesy of FORD MOTOR CO.

Item	Description	Comments
1	ACM	-
2	AM/FM antenna	-
3	AM/FM antenna coaxial cable	-
4	Front door speaker	-
5	Rear door speaker	If equipped
