Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Vehicles with floor console

Open the floor console stowage bin door.

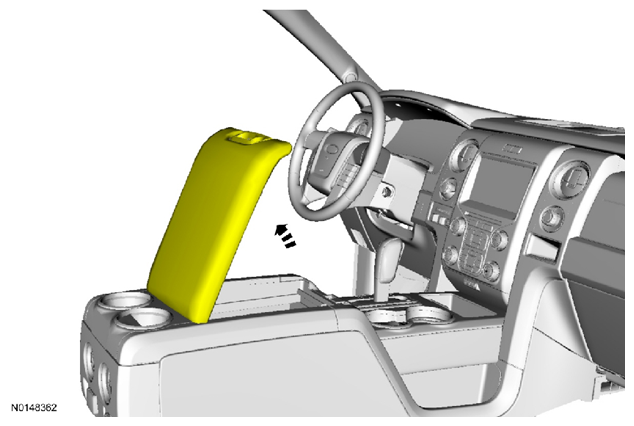

Fig 1: Opening Floor Console Stowage Bin Door
Courtesy of FORD MOTOR CO.
Remove the media hub.
- Disconnect the electrical connectors.

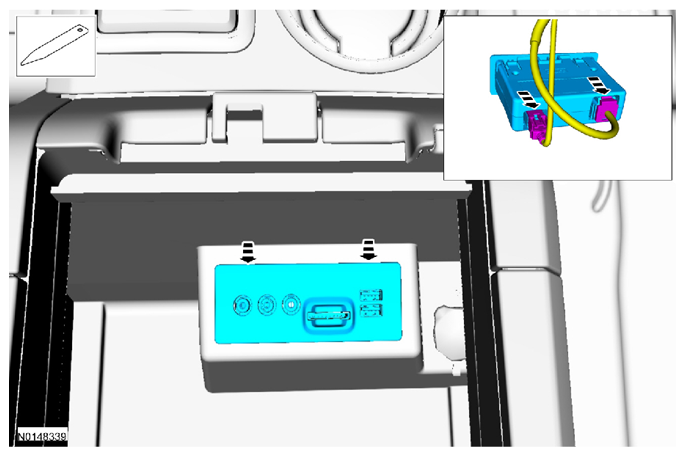

  Fig 2: Removing Media Hub Electrical Connectors
  Courtesy of FORD MOTOR CO.

  Vehicles without floor console
Open the lower instrument panel door.

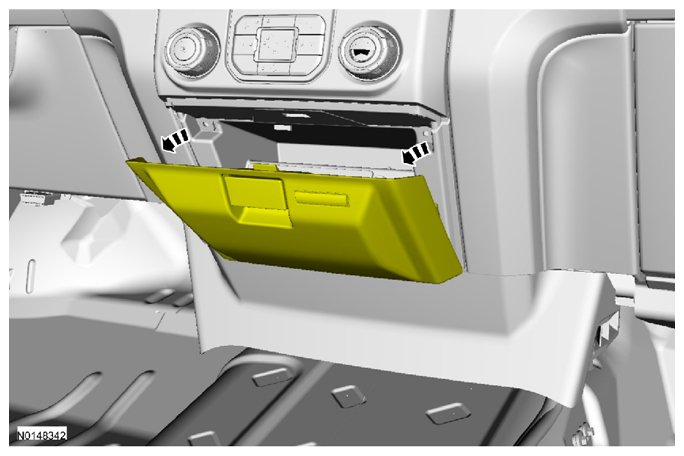

Fig 3: Opening Lower Instrument Panel Door
Courtesy of FORD MOTOR CO.
Remove the media hub.
- Disconnect the electrical connectors.

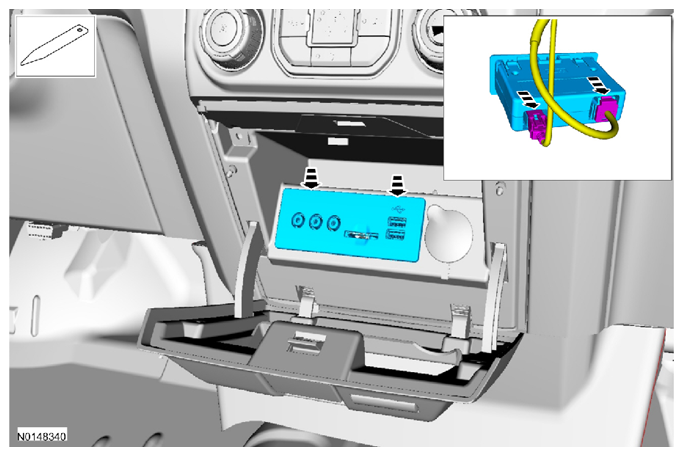

  Fig 4: Removing Media Hub Electrical Connectors
  Courtesy of FORD MOTOR CO.

  All vehicles
To install, reverse the removal procedure.
