Component Location
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

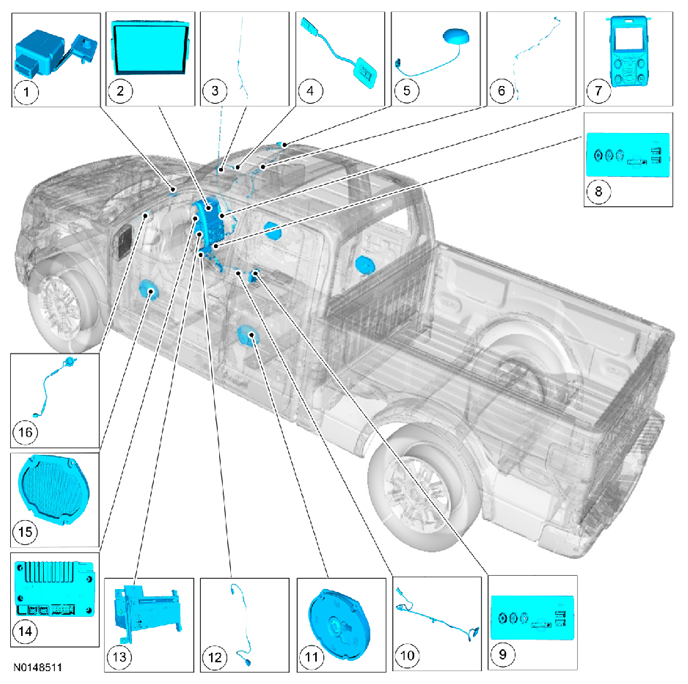

| Item | Description | Comments |
|---|---|---|
| 1 | GPSM | Located in the top center area of the instrument panel |
| 2 | FDIM | Attached to the APIM |
| 3 | AM/FM/HD Radio® antenna and AM/FM/HD Radio® coaxial cable | HD Radio® (if equipped) |
| 4 | SYNC® microphone | Located in the headliner |
| 5 | Satellite radio antenna | If equipped |
| 6 | Satellite radio antenna coaxial cable | If equipped |
| 7 | FCIM | - |
| 8 | Media hub | Located in the instrument panel (with split bench) |
| 9 | Media hub | Located in the console (with front captain chairs) |
| 10 | USB cable | Located in the console (with front captain chairs) |
| 11 | Rear door speaker | - |
| 12 | USB cable | Located in the instrument panel (with split bench) |
| 13 | ACM | - |
| 14 | APIM | Attached to the FDIM |
| 15 | Front door speaker | - |
