F-450/F-550 Vehicles: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

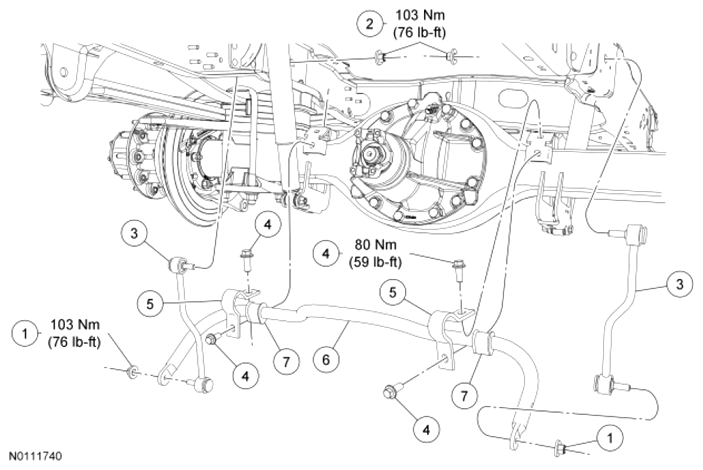

Fig 1: Exploded View Of Stabilizer Bar And Link With Torque Specification (F450 And F550)
G07477814Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W520214 Stabilizer bar link lower nuts (2 required)
2 W520214 Stabilizer bar link upper nuts (2 required)
3 5K484 Stabilizer bar links (2 required)
4 N605814 Stabilizer bar bracket bolts (4 required)
5 5486 Stabilizer bar brackets (2 required)
6 5A772 Stabilizer bar
7 5493 Stabilizer bar bushings
