Rain Sensor: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

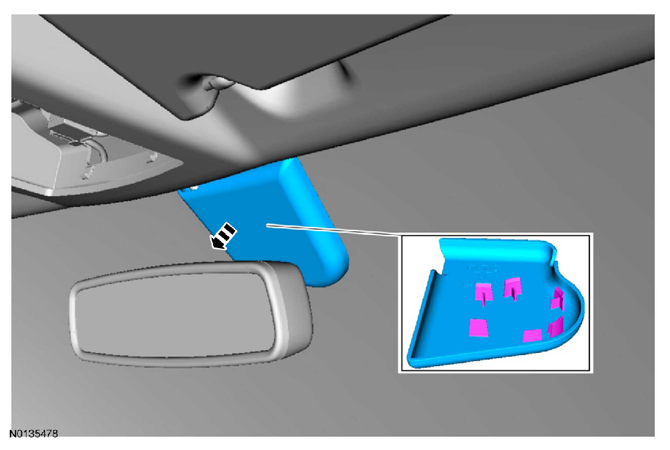

  1. Fig 1: Removing Rain Sensor Trim Cover
    G08344353Courtesy of FORD MOTOR CO.

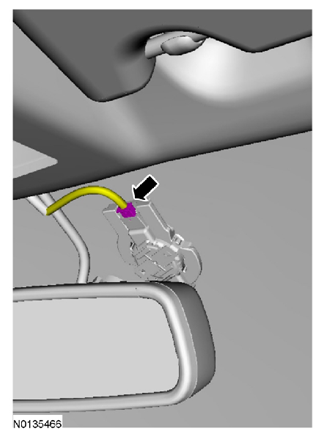

  2. Fig 2: Locating Rain Sensor Electrical Connector
    G08344354Courtesy of FORD MOTOR CO.

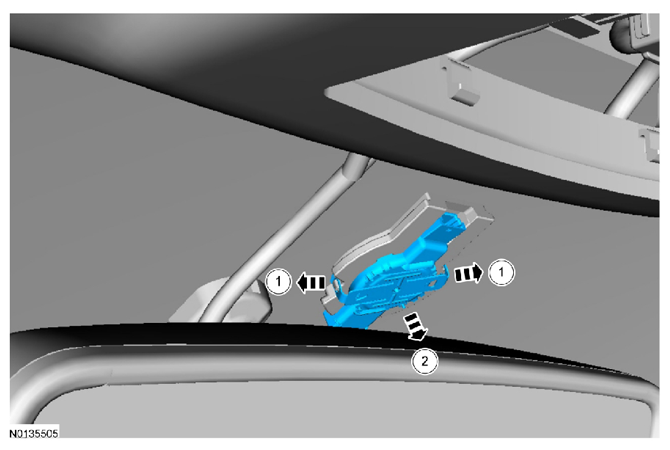

  3. Fig 3: Removing Rain Sensor
    G08344355Courtesy of FORD MOTOR CO.
