Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the steering column shrouds. For additional information, refer to STEERING COLUMN .
Disconnect the Tow/Haul switch electrical connector.

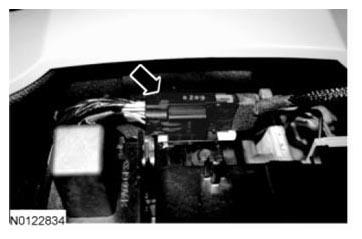

Fig 1: Locating Tow/Haul Switch Electrical Connector
Courtesy of FORD MOTOR CO.
Remove and discard the selector lever bolt.
- To install, tighten to 18 Nm (159 lb-in).

  Fig 2: Locating Selector Lever Bolt
  Courtesy of FORD MOTOR CO.
Remove the selector lever.
To install, reverse the removal procedure.
