Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

All vehicles

Remove the lower instrument panel center finish panel. For additional information, refer to INSTRUMENT PANEL FINISH PANEL - CENTER, LOWER in this section.
Vehicles equipped with a storage compartment
Remove the 4 instrument panel lower storage compartment screws.

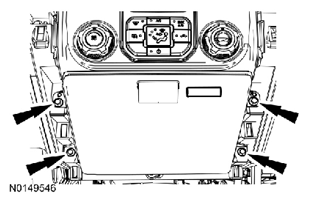

Fig 1: Locating Instrument Panel Lower Storage Compartment Screws
Courtesy of FORD MOTOR CO.
Remove the instrument panel lower storage compartment.
Vehicles equipped with an media bin
Remove the 4 media bin screws.

Fig 2: Locating Media Bin Screws
Courtesy of FORD MOTOR CO.
Remove the media bin.
All vehicles
To install, reverse the removal procedure.
