Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Position the steering wheel downward.

Fig 1: Positioning Steering Wheel Downward
Courtesy of FORD MOTOR CO.
Remove the 2 instrument cluster finish panel screws and the instrument cluster finish panel.
- Release the gap hider retainers
- Pull the instrument cluster finish panel toward the rear of the vehicle to release the retaining clips.

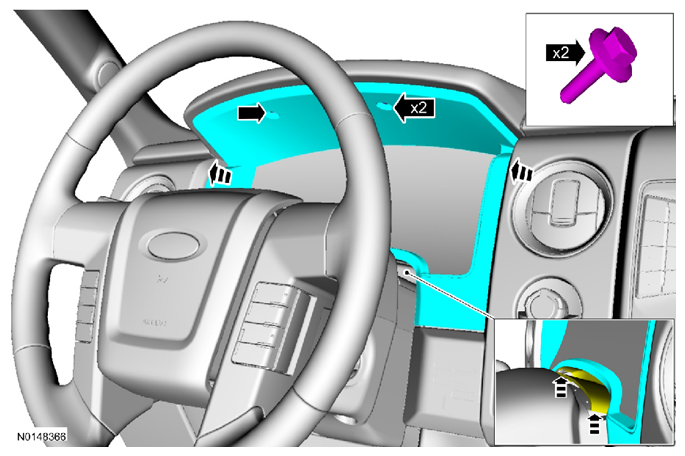

  Fig 2: Removing Instrument Cluster Finish Panel
  Courtesy of FORD MOTOR CO.
Remove the LH instrument panel finish panel.
- Pull the LH instrument panel finish panel toward the rear of the vehicle to release the retaining clips.
  - Disconnect the electrical connectors.

    Fig 3: Removing LH Instrument Panel Finish Panel Electrical Connectors
    Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
