Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Apply the parking brake.
  2. Place the selector lever in the 1 position.
  3. Position the steering wheel downward.

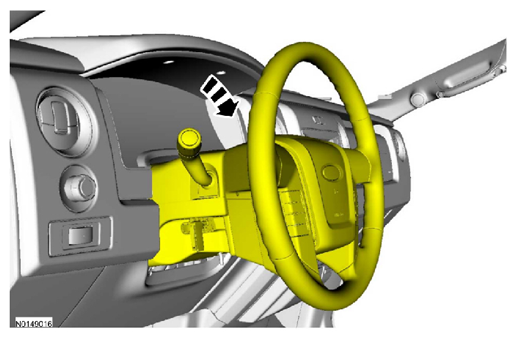

    Fig 1: Positioning Steering Wheel Downward
    G08344227Courtesy of FORD MOTOR CO.
  4. Remove the 2 instrument cluster finish panel screws and remove the instrument cluster finish panel.
    • Release the gap hider retainers.
    • Pull the instrument cluster finish panel toward the rear of the vehicle to release the retaining clips.

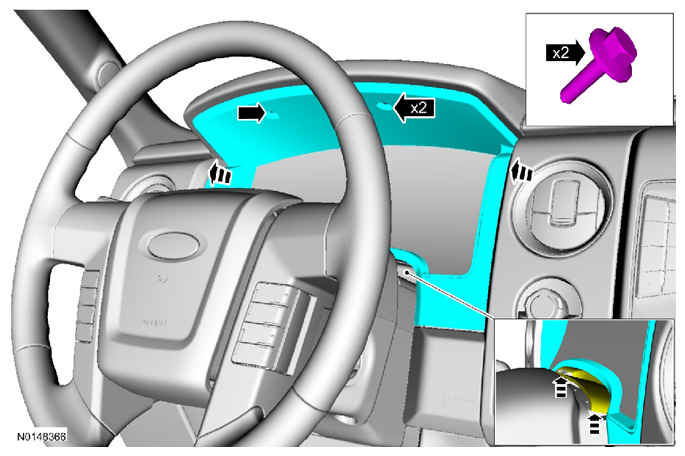

      Fig 2: Locating Screws And Instrument Cluster Finish Panel
      G08344228Courtesy of FORD MOTOR CO.
  5. To install, reverse the removal procedure.
