Turbocharger Bypass Valve: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Whenever turbocharger air intake system components are removed, always cover open ports to protect from debris. It is important that no foreign material enter the system. The turbocharger compressor vanes are susceptible to damage from even small particles. All components should be inspected and cleaned, if necessary, prior to installation or reassembly.

NOTE: Removal steps in this procedure may contain installation details.

With the vehicle in NEUTRAL, position it on a hoist. Refer to JACKING & LIFTING .

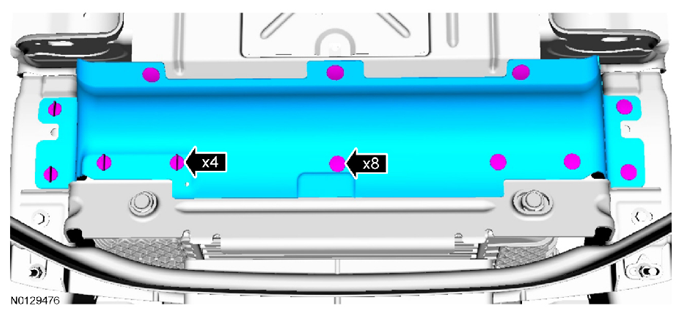

Fig 1: Locating Turbocharger Bypass Valve Pushpins
Courtesy of FORD MOTOR CO.

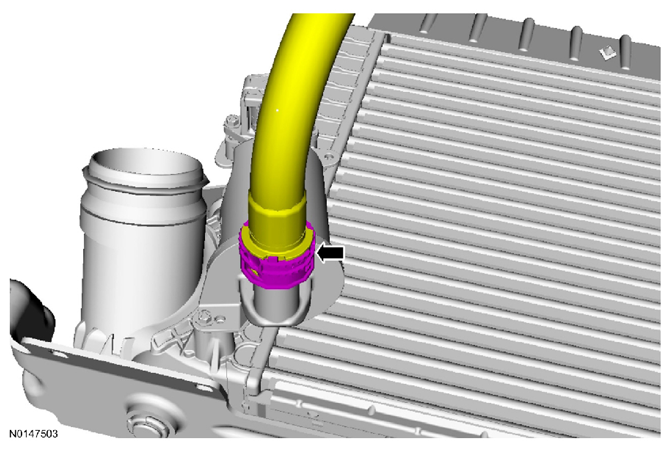

Fig 2: Locating Turbocharger Inlet Hose Clamp
Courtesy of FORD MOTOR CO.
Fig 3: Locating Turbocharger Inlet Hose Fitting
Courtesy of FORD MOTOR CO.
Fig 4: Locating Turbocharger Connector And Clamp
Courtesy of FORD MOTOR CO.
- To install, tighten to 6 Nm (53 lb-in).

  Fig 5: Locating Turbocharger Electrical Connector Mounting Bolts
  Courtesy of FORD MOTOR CO.
