Pinpoint Test O: The Heated Seat Is Inoperative - Front Passenger

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: If a seat equipped with a seat mounted side air bag is being repaired, the Supplemental Restraint System (SRS) must be depowered. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
NOTE: The air bag warning lamp illuminates when the Restraints Control Module (RCM) fuse is removed and the ignition switch is ON. This is normal operation and does not indicate an SRS fault.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
  1. O1 CHECK FOR HVAC DTCs
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - HVAC Module.
    • Were any DTCs retrieved during the self-tests?
    • Yes  : For DTCs B1036:11 or B1036:13, GO to  O3.

      For DTCs B103A:11 or B103A:12, GO to  O4.

      For all other DTCs, REFER to the HVAC Module DTC Chart .

    • No  : GO to O2.
  2. O2 CHECK THE TOUCHSCREEN CONTROLS OPERATION
    • Start the engine.
    • Select each audio and climate control function using the touchscreen controls.
    • Do all touchscreen controls operate?
  3. O3 CHECK THE HEATER ELEMENT POWER CIRCUIT FOR AN OPEN OR SHORT TO GROUND
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Passenger Seat Side Air Bag Module C339.
    • Disconnect: HVAC Module C228B.
    • Disconnect: Passenger Cushion Heater Mat C334.
      • WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any airbag when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
    • Connect the battery ground cable. Refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
    • Measure the resistance between:
      • passenger seat cushion heater mat C334-1, circuit CHS07 (GY/BU), harness side and ground.
      • passenger seat cushion heater mat C334-1, circuit CHS07 (GY/BU), harness side and HVAC module C228B-17, circuit CHS07 (GY/BU), harness side.
        Fig 1: Checking Heater Element Power Circuit For Open Or Short To Ground
        G07402888Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms between the passenger seat cushion heater mat and ground; and less than 3 ohms between the passenger seat cushion heater mat and the HVAC module?
  4. O4 CHECK THE HEATED SEAT TEMPERATURE SENSOR CIRCUIT FOR AN OPEN OR SHORT TO GROUND
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Passenger Seat Side Air Bag Module C339.
    • Disconnect: HVAC Module C228B.
    • Disconnect: Passenger Cushion Heater Mat C334.
      • WARNING: Make sure no one is in the vehicle and there is nothing blocking or placed in front of any airbag when the battery is connected. Failure to follow these instructions may result in serious personal injury in the event of an accidental deployment.
    • Connect the battery ground cable. Refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
    • Measure the resistance between:
      • passenger seat cushion heater mat C334-2, circuit VHS27 (WH/OG), harness side and ground.
      • passenger seat cushion heater mat C334-2, circuit VHS27 (WH/OG), harness side and HVAC module C228B-15, circuit VHS27 (WH/OG), harness side.

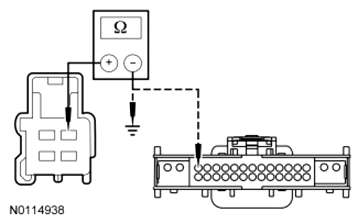

        Fig 2: Checking Heated Seat Temperature Sensor Circuit For Open Or Short To Ground
        G07402889Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms between the passenger seat cushion heater mat and ground; and less than 3 ohms between the passenger seat cushion heater mat and the HVAC module?
  5. O5 CHECK THE HEATED SEAT TEMPERATURE SENSOR RETURN CIRCUIT FOR AN OPEN OR SHORT TO GROUND
    • Disconnect: HVAC Module C228A.
    • Measure the resistance between:
      • passenger seat cushion heater mat C334-3, circuit RHS05 (YE/VT), harness side and ground.
      • passenger seat cushion heater mat C334-3, circuit RHS05 (YE/VT), harness side and HVAC module C228A-23, circuit RH111 (GY/BU), harness side.
        Fig 3: Checking Heated Seat Temperature Sensor Return Circuit For Open Or Short To Ground
        G07402881Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms between the passenger seat cushion heater mat and ground; and less than 3 ohms between the passenger seat cushion heater mat and the HVAC module?
  6. O6 CHECK THE HEATED SEAT TEMPERATURE SENSOR CIRCUIT FOR A SHORT TO VOLTAGE
    • Ignition ON.
    • Measure the voltage between the following passenger seat cushion heater mat C334-2, circuit VHS27 (WH/OG), harness side and ground.
      Fig 4: Checking Heated Seat Temperature Sensor Circuit For A Short To Voltage
      G08343732Courtesy of FORD MOTOR CO.
    • Is any voltage present?
  7. O7 CHECK THE HEATER ELEMENT GROUND CIRCUIT FOR AN OPEN
    • Disconnect: Passenger Seat Backrest Heater Mat C335.
    • Measure the resistance between passenger seat backrest heater mat C335-2, circuit GD904 (BK/BU), harness side and ground.
      Fig 5: Checking Heater Element Ground Circuit For An Open
      G06173390Courtesy of FORD MOTOR CO.
    • Is the resistance less than 0.5 ohms?
  8. O8 CHECK CUSHION HEATED SEAT MAT FOR AN OPEN OR SHORT TO GROUND
    • Measure the resistance between passenger seat cushion heater mat C334 pins 1 and 4, component side; and between passenger seat cushion heater mat C334 pin 1, component side and ground.
      Fig 6: Checking Cushion Heated Seat Mat For Open Or Short To Ground
      G08343734Courtesy of FORD MOTOR CO.
    • Is the resistance between 0.6 and 2 ohms between pins 1 and 4; and greater than 10, 000 ohms between pin 1 and ground?
  9. O9 CHECK THE BACKREST HEATED SEAT MAT FOR AN OPEN OR SHORT TO GROUND
    • Measure the resistance between passenger seat backrest heater mat C335 pins 1 and 2, component side; and between passenger seat backrest heater mat C335 pin 2, component side and ground.
      Fig 7: Checking Backrest Heated Seat Mat For Open Or Short To Ground
      G08343735Courtesy of FORD MOTOR CO.
    • Is the resistance between 0.9 and 1.1 ohms between pins 1 and 2: and greater than 10, 000 ohms between pin 2 and ground?
  10. O10 CHECK THE CIRCUIT BETWEEN THE CUSHION HEATER MAT AND BACKREST HEATER MAT FOR AN OPEN AND SHORT TO GROUND
    • Measure the resistance between:
      • passenger seat cushion heater mat C334-4, circuit CHS01 (GY/VT), harness side and seat backrest heater mat C365-1, circuit CHS01 (GY/VT) harness side.
      • passenger seat cushion heater mat C334-4, circuit CHS01 (GY/VT), harness side and ground.
        Fig 8: Checking Circuit Between Cushion Heater Mat And Backrest Heater Mat For Open And Short To Ground
        G06255405Courtesy of FORD MOTOR CO.
    • Is the resistance less than 3 ohms between C334-4 and C335-1, and greater than 10, 000 ohms between C334-4 and ground?
  11. O11 CHECK THE HEATED SEAT TEMPERATURE SENSOR FOR AN OPEN OR SHORT TO GROUND
    • Ignition OFF.
    • Measure the resistance between passenger heated seat cushion C334 pins 2 and 3, component side; and between heated seat cushion C334 pin 2, component side and ground.
      Fig 9: Checking Heated Seat Temperature Sensor For Open Or Short To Ground
      G08343737Courtesy of FORD MOTOR CO.
    • Is the resistance between 300 ohms and 300, 000 ohms between pins 2 and 3; and greater than 10, 000 ohms between pin 2 and ground?
