PINPOINT TEST I: DTCs B0029:11, B0029:12, B0029:13 AND B0029:1A

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Do not handle, move or change the original horizontal mounting position of the restraints control module (RCM) while the RCM is connected and the ignition switch is ON. Failure to follow this instruction may result in the accidental deployment of the Safety Canopy and cause serious personal injury or death.
WARNING: Never probe the electrical connectors on airbag, Safety Canopy or side air curtain assemblies. Failure to follow this instruction may result in the accidental deployment of these assemblies, which increases the risk of serious personal injury or death.
NOTE: Use the correct probe adapter(s) from the Flex Probe Kit when taking measurements. Failure to use the correct probe adapter(s) may damage the connector.
NOTE: Most faults are due to connector and/or wiring concerns. Carry out a thorough inspection and verification before proceeding with the pinpoint test.
NOTE: Only disconnect or reconnect Supplemental Restraint System (SRS) components when instructed to do so within a pinpoint test step. Failure to follow this instruction may result in incorrect diagnosis of the SRS.
NOTE: Always make sure the correct SRS component is being installed. Parts released for other vehicles may not be compatible even if they appear physically similar. Check the part number listed in the parts catalog to make sure the correct component is being installed. If an incorrect SRS component is installed, DTCs may set.
NOTE: The SRS must be fully operational and free of faults before releasing the vehicle to the customer.
  1. I1 RETRIEVE RCM DTCs
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was DTC B0029:11, B0029:12, B0029:13 or B0029:1A retrieved on-demand during self-test?
    • Yes  : This fault cannot be cleared until it is corrected and the DTC is no longer retrieved on-demand during self-test.

      For DTC B0029:13 or B0029:1A, GO to I2.

      For DTC B0029:11, GO to  I8.

      For DTC B0029:12, GO to  I10.

    • No  : This is an intermittent fault when present as a Continuous Memory Diagnostic Trouble Code (CMDTC) only.

      For DTC B0029:13 or B0029:1A, GO to  I13.

      For DTC B0029:11, GO to  I14.

      For DTC B0029:12, GO to  I15.

  2. I2 CHECK THE RIGHT CURTAIN DEPLOYMENT CONTROL 1 RESISTANCE (DEPLOY_14_R) PID
    • Enter the following diagnostic mode on the scan tool: DataLogger - RCM.
      • Monitor and record PID DEPLOY_14_R.
    • Does the PID value read between 1.7 and 2.78 ohms?
    • Yes  : GO to  I12.
    • No  : GO to I3.
  3. I3 CHECK THE RIGHT CURTAIN DEPLOYMENT CONTROL 1 RESISTANCE (DEPLOY_14_R) PID WHILE CARRYING OUT THE HARNESS TEST
    • While monitoring the DEPLOY_14_R PID, carry out the harness test of the passenger Safety Canopy® circuits and accessible connectors (including any in-line connectors), by wiggling connectors and flexing the wire harness frequently.
    • Does the PID value read between 1.7 and 2.78 ohms while carrying out the harness test?
    • Yes  : DEPOWER the SRS and REPAIR the connector, terminals or wire harness as needed. Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
    • No  : For PID value less than 1.7 ohms, GO to I4.

      For PID value greater than 2.78 ohms, GO to  I6.

  4. I4 CHECK THE RIGHT CURTAIN DEPLOYMENT CONTROL 1 DTC FOR A FAULT STATUS CHANGE (LOW RESISTANCE INDICATED)
    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.
    • Yes  : GO to  I11.
    • No  : GO to I5.
  5. I5 CHECK FOR A SHORT BETWEEN PASSENGER SAFETY CANOPY® CIRCUITS
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: RCM C310A and C310B.
    • Measure the resistance between passenger Safety Canopy® C3329-1, circuit CR111 (BN/WH), harness side and C3329-2, circuit RR111 (YE/VT), harness side.
      Fig 1: Measuring Resistance Between Passenger Safety Canopy® C3329-1, Circuit CR111 (BN/WH) And C3329-2, Circuit RR111 (YE/VT)
      G06173993Courtesy of FORD MOTOR CO.
    • Is the resistance greater than 10, 000 ohms?
    • Yes  : GO to  I12.
    • No  : REPAIR circuits CR111 (BN/WH) and RR111 (YE/VT). Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
  6. I6 CHECK THE PASSENGER SAFETY CANOPY® CIRCUITS FOR AN OPEN
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Passenger Safety Canopy® C3329.
      • For regular cab, remove the RH side B-pillar trim panel.
      • For SuperCab and Crew Cab, remove the RH C-pillar trim panel.
      • Refer to Interior Trim in INTERIOR TRIM AND ORNAMENTATION .
    • Disconnect: RCM C310A and C310B.
    • Measure the resistance between RCM C310B, harness side and passenger Safety Canopy® C3329, harness side using the following chart.
      RCM Circuit Passenger Safety Canopy® Electrical Connector
      C310B-17 CR111 (BN/WH) C3329-1
      C310B-18 RR111 (YE/VT) C3329-2

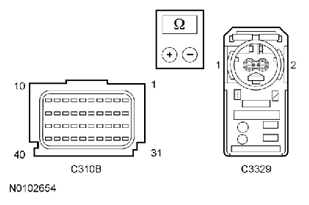

      Fig 2: Measuring Resistance Between RCM C310B And Passenger Safety Canopy® C3329
      G08344476Courtesy of FORD MOTOR CO.
    • Are the resistances less than 0.5 ohm?
    • Yes  : GO to I7.
    • No  : REPAIR circuit CR111 (BN/WH) or RR111 (YE/VT). Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
  7. I7 CHECK THE RIGHT CURTAIN DEPLOYMENT CONTROL 1 DTC FOR A FAULT STATUS CHANGE (OPEN INDICATED)
    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.
    • Connect: RCM C310A and C310B.
    • Connect a fused jumper wire between passenger Safety Canopy® C3329-1, circuit CR111 (BN/WH), harness side and C3329-2, circuit RR111 (YE/VT), harness side.
      Fig 3: Connecting Fused Jumper Wire Between Passenger Safety Canopy® C3329-1, Circuit CR111 (BN/WH) And C3329-2, Circuit RR111 (YE/VT)
      G07399495Courtesy of FORD MOTOR CO.
    • Repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • DIAGNOSTIC TIP:  When viewing DTCs with the passenger Safety Canopy® circuits shorted together, a low resistance fault is normally retrieved.
    • Did the on-demand DTC change from B0029:13 to B0029:1A?
    • Yes  : REMOVE the fused jumper wire and GO to  I11.
    • No  : REMOVE the fused jumper wire and GO to  I12.
  8. I8 CHECK THE RIGHT CURTAIN DEPLOYMENT CONTROL 1 DTC FOR A FAULT STATUS CHANGE (SHORT TO GROUND INDICATED)
    NOTE: This pinpoint test step attempts to change the fault reported by the RCM by inducing a different fault condition. If the fault reported changes, this indicates the RCM is functioning correctly and is not the source of the fault.
    • Yes  : GO to  I11.
    • No  : GO to I9.
  9. I9 CHECK THE PASSENGER SAFETY CANOPY® CIRCUITS FOR A SHORT TO GROUND
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: RCM C310A and C310B.
    • Measure the resistance between passenger Safety Canopy®:
      • C3329-1, circuit CR111 (BN/WH), harness side and ground.
      • C3329-2, circuit RR111 (YE/VT), harness side and ground.
        Fig 4: Checking Passenger Safety Canopy® Circuits For Short To Ground
        G06173997Courtesy of FORD MOTOR CO.
    • Are the resistances greater than 10, 000 ohms?
    • Yes  : GO to  I12.
    • No  : REPAIR circuit CR111 (BN/WH) or RR111 (YE/VT). Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
  10. I10 CHECK THE PASSENGER SAFETY CANOPY® CIRCUITS FOR A SHORT TO VOLTAGE
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Passenger Safety Canopy® C3329.
      • For regular cab, remove the RH side B-pillar trim panel.
      • For SuperCab and Crew Cab, remove the RH C-pillar trim panel.
      • Refer to Interior Trim in INTERIOR TRIM AND ORNAMENTATION .
    • Disconnect: RCM C310A and C310B.
    • Repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Measure the voltage between passenger Safety Canopy® C9019:
      • C3329-1, circuit CR111 (BN/WH), harness side and ground.
      • C3329-2, circuit RR111 (YE/VT), harness side and ground.
        Fig 5: Checking Passenger Safety Canopy® Circuits For Short To Voltage
        G06173999Courtesy of FORD MOTOR CO.
    • Is voltage present on either circuit?
    • Yes  : REPAIR circuit CR111 (BN/WH) or RR111 (YE/VT). Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
    • No  : GO to  I12.
  11. I11 CONFIRM THE PASSENGER SAFETY CANOPY® MODULE FAULT
    NOTE: Make sure all restraint system components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
    • Yes  : INSTALL a new passenger Safety Canopy®. REFER to SAFETY CANOPY MODULE . GO to  I17.
    • No  : In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test  .

      For DTC B0029:13 or B0029:1A, GO to  I13.

      For DTC B0029:11, GO to  I14.

      For DTC B0029:12, GO to  I15.

  12. I12 CONFIRM THE RCM FAULT
    NOTE: Make sure all restraint system components and the RCM electrical connectors are connected before carrying out the self-test. If not, DTCs will be recorded.
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Prior to reconnecting any previously disconnected SRS component:
      • inspect connector(s) (including any in-line connectors) for pushed-out, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damage, pinched, cut or pierced wires.
      • inspect RCM C310A and C310B Connector Position Assurance (CPA) lever/lock for correct operation. Refer to RESTRAINTS CONTROL MODULE (RCM) .
      • repair any concerns found. Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information.
    • Connect: Passenger Safety Canopy® C3329.
    • Connect: RCM C310A and C310B.
    • Repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was the original DTC retrieved on-demand during self-test?
    • Yes  : INSTALL a new RCM. REFER to RESTRAINTS CONTROL MODULE (RCM) . GO to  I17.
    • No  : In the process of diagnosing the fault, the fault condition has become intermittent. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test  .

      For DTC B0029:13 or B0029:1A, GO to  I13.

      For DTC B0029:11, GO to  I14.

      For DTC B0029:12, GO to  I15.

  13. I13 CHECK THE RIGHT CURTAIN DEPLOYMENT CONTROL 1 RESISTANCE (DEPLOY_14_R) PID FOR AN INTERMITTENT LOW RESISTANCE OR OPEN CIRCUIT FAULT
    • Enter the following diagnostic mode on the scan tool: DataLogger - RCM.
      • Monitor and record PID DEPLOY_14_R.
    • Attempt to recreate the fault by wiggling connectors (including any inline connectors) and flexing the wire harness frequently.
    • Does the PID value read between 1.7 and 2.78 ohms?
    • Yes  : The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test  . GO to  I16.
    • No  : DEPOWER the SRS and REPAIR as necessary. Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
  14. I14 CHECK FOR AN INTERMITTENT RIGHT CURTAIN DEPLOYMENT CONTROL 1 SHORT TO GROUND FAULT
    • Attempt to recreate the fault by wiggling connectors (including any inline connectors) and flexing the wire harness frequently.
    • Enter the following diagnostic mode on the scan tool: Self Test - RCM.
    • Was DTC B0029:11 retrieved on-demand during self-test?
    • Yes  : DEPOWER the SRS and REPAIR as necessary. Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
    • No  : The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test  . GO to  I16.
  15. I15 CHECK FOR AN INTERMITTENT RIGHT CURTAIN DEPLOYMENT CONTROL 1 SHORT TO BATTERY FAULT
    • Yes  : DEPOWER the SRS and REPAIR as necessary. Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
    • No  : The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test  . GO to  I16.
  16. I16 CHECK THE HARNESS AND CONNECTORS
    • Ignition OFF.
    • Depower the SRS. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Disconnect: Driver Safety Canopy® C3329.
      • For regular cab, remove the RH side B-pillar trim panel.
      • For SuperCab and Crew Cab, remove the RH C-pillar trim panel.
      • Refer to Interior Trim in INTERIOR TRIM AND ORNAMENTATION .
      • inspect connector(s) (including any in-line connectors) for corrosion, loose or spread terminals and loose or frayed wire connections at terminals.
      • inspect wire harness for any damage, pinched, cut or pierced wires.
      • inspect RCM C310A and C310B CPA lever/lock for correct operation. Refer to RESTRAINTS CONTROL MODULE (RCM) .
    • Were any concerns found?
    • Yes  : REPAIR as necessary. Refer to OEM Wiring Diagrams - Connector Repair Procedures for schematic and connector information. GO to  I17.
    • No  : The fault is not present and cannot be recreated at this time. Do not install any new SRS components at this time. Install SRS components only when directed to do so in the pinpoint test  . GO to  I17.
  17. I17 CHECK FOR ADDITIONAL SRS DTCs
    • Ignition OFF.
      WARNING: Turn the ignition OFF and wait one minute to deplete the backup power supply. Failure to follow this instruction may result in serious personal injury or death in the event of an accidental deployment.
    • Reconnect all SRS components (if previously disconnected).
    • If previously directed to depower the SRS, repower the SRS. Do not prove out the SRS at this time. Refer to SUPPLEMENTAL RESTRAINT SYSTEM (SRS) DEPOWERING AND REPOWERING .
    • Ignition ON.
    • Enter the following diagnostic mode on the scan tool: Self Test - Restraints.
      NOTE: When selecting Restraints from the Self Test menu, DTCs are retrieved from the RCM and OCSM.
    • Are any RCM and/or OCSM DTCs retrieved on-demand during self-test?
    • Yes  : Do not clear any DTCs until all DTCs have been resolved. GO to the DTC CHARTS  for pinpoint test direction.
    • No  : CLEAR all RCM and OCSM CMDTCs. PROVE OUT the SRS. The repair is complete. RETURN the vehicle to the customer.
