Airbag and Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (Illustration 2 of 2)
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

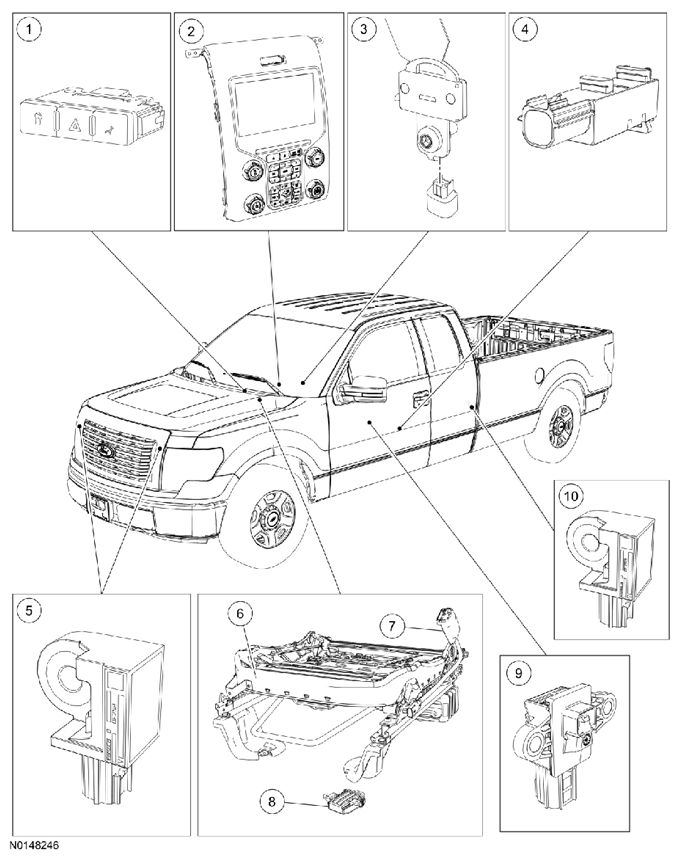

Fig 1: Identifying Air Bag And Safety Belt Pretensioner Supplemental Restraint System (SRS) Components (2 Of 2)
| Item | Part Number | Description |
|---|---|---|
| 1 | 2C418 | PAD indicator (part of hazard/traction control switch assembly) (vehicles without 4.2" LCD IPC display only) |
| 2 | 18842 | FCIM (includes PAD indicator) (vehicles with 4.2" LCD IPC display only) |
| 3 | 611B08 | BTS (part of passenger safety belt retractor pretensioner assembly) |
| 4 | 14B416 | Driver seat track position sensor |
| 5 | 14B004 | LH/RH front impact severity sensor |
| 6 | 61704 (manual seat)/61710 (power seat) | Passenger seat track assembly (includes OCS weight sensor bolts) |
| 7 | 61203/61202 | Driver/passenger safety belt buckle (includes safety belt buckle switch) |
| 8 | 14B056 | OCSM |
| 9 | 14B345 | Driver/passenger front door side impact sensor (pressure sensor) |
| 10 | 14B004 | Driver/passenger second row side impact sensor |
