Parking Brake Shoes: Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: Using specified grease, lubricate the parking brake shoes where the shoe contacts the actuator lever and the support bracket.

    Apply the substance from the specified tube.

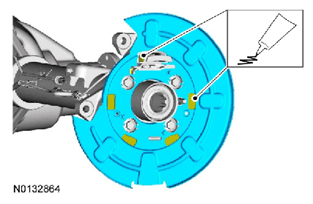

    Fig 1: Lubricating Parking Brake Shoes Where Shoe Contacts Actuator Lever And Support Bracket
    G08336098Courtesy of FORD MOTOR CO.
  2. NOTE: Completely retract the parking brake adjusting screw before installation.

    To install, reverse the removal procedure.

  3. Adjust the parking brake shoe. For additional information, refer to PARKING BRAKE SHOE ADJUSTMENT .
  4. Reload the tension on the parking brake cable. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .
