Parking Brake Cable - Rear, RH: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Release the parking brake cable tension. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .

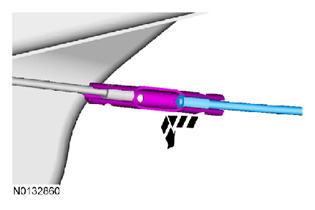

Fig 1: Removing Parking Brake Cable - Rear (RH) (1 Of 6)
Courtesy of FORD MOTOR CO.

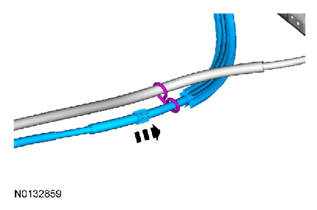

Fig 2: Removing Parking Brake Cable - Rear (RH) (2 Of 6)
Courtesy of FORD MOTOR CO.
To install, tighten to 15 Nm (133 lb-in).

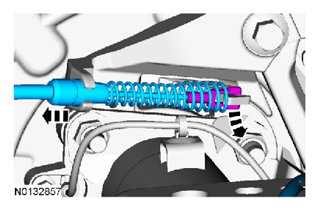

Fig 3: Removing Parking Brake Cable - Rear (RH) (3 Of 6)
Courtesy of FORD MOTOR CO.

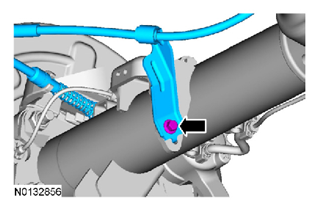

Fig 4: Removing Parking Brake Cable - Rear (RH) (4 Of 6)
Courtesy of FORD MOTOR CO.

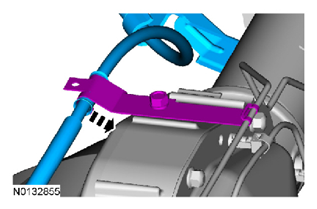

Fig 5: Removing Parking Brake Cable - Rear (RH) (5 Of 6)
Courtesy of FORD MOTOR CO.
To install, tighten to 30 Nm (22 lb-ft).

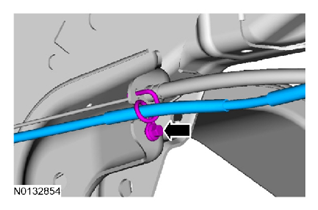

Fig 6: Removing Parking Brake Cable - Rear (RH) (6 Of 6)
Courtesy of FORD MOTOR CO.
Fig 7: Releasing Parking Brake Cable Tension
Courtesy of FORD MOTOR CO.
