Parking Brake Cable - Rear, LH: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

Release the parking brake cable tension. For additional information, refer to PARKING BRAKE CABLE TENSION RELEASE .

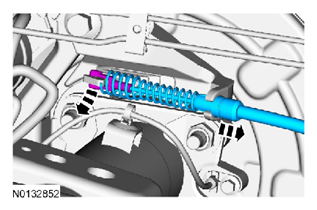

Fig 1: Removing Parking Brake Cable - Rear (LH) (1 Of 4)
Courtesy of FORD MOTOR CO.

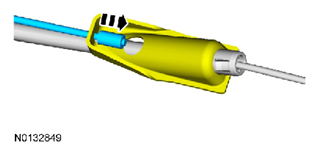

Fig 2: Removing Parking Brake Cable - Rear (LH) (2 Of 4)
Courtesy of FORD MOTOR CO.
Fig 3: Removing Parking Brake Cable - Rear (LH) (3 Of 4)
Courtesy of FORD MOTOR CO.

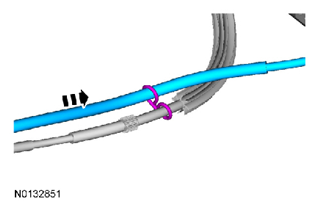

Fig 4: Removing Parking Brake Cable - Rear (LH) (4 Of 4)
Courtesy of FORD MOTOR CO.
