Rear Brake Pads: Removal
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not use any fluid other than clean brake fluid meeting manufacturer's specification. Additionally, do not use brake fluid that has been previously drained. Following these instructions will help prevent system contamination, brake component damage and the risk of serious personal injury.
WARNING:
Carefully read cautionary information on product label. For emergency medical information seek medical advice. In the USA or Canada on Ford/Motorcraft products call: 1-800-959-3673. For additional information, consult the product Material Safety Data Sheet (MSDS) if available. Failure to follow these instructions may result in serious personal injury.
WARNING:
Always install new brake shoes or pads at both ends of an axle to reduce the possibility of brakes pulling vehicle to one side. Failure to follow this instruction may result in uneven braking and serious personal injury.
NOTE:
Do not spill brake fluid on painted or plastic surfaces or damage to the surface may occur. If brake fluid is spilled onto a painted or plastic surface, immediately wash the surface with water.

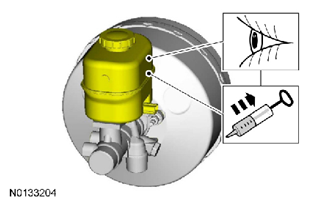

- Visual check. Extract the fluid with a syringe.
If necessary, remove fluid until the brake master cylinder reservoir is half full.
- Remove the wheel and tire. For additional information, refer to WHEELS & TIRES .

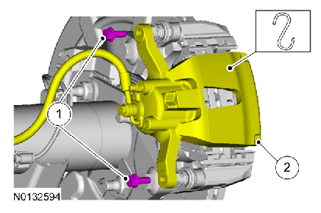

- Relocate and support the component.

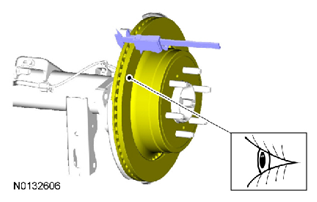

- Visual check.
Measure the brake disc thickness and install a new brake disc if it is not within specification.
NOTE:
Do not allow the caliper to hang from the brake hose or damage to the hose can occur.
