Rear Brake Caliper: Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

- Tighten to 33 Nm (24 lb-ft).

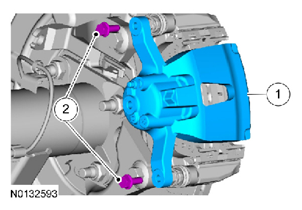

  Fig 1: Identifying Brake Caliper And Bolts
  Courtesy of FORD MOTOR CO.

NOTE: Use 2 new copper washers.

- Tighten to 35 Nm (26 lb-ft).

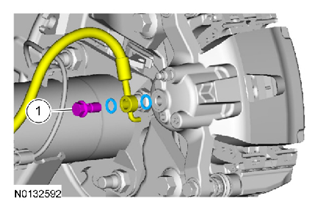

  Fig 2: Identifying Brake Hose, Bolt And Washer
  Courtesy of FORD MOTOR CO.
Bleed the brake caliper. For additional information, refer to Component Bleeding in BRAKE SYSTEM - GENERAL INFORMATION .
Install the wheel and tire. For additional information, refer to WHEELS & TIRES .
