Removal and Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove the rear wheel and tire. For additional information, refer to WHEELS & TIRES .
Remove the rear brake disc. For additional information, refer to REAR DISC BRAKE SYSTEM .
- To install, tighten to 15 Nm (133 lb-in).

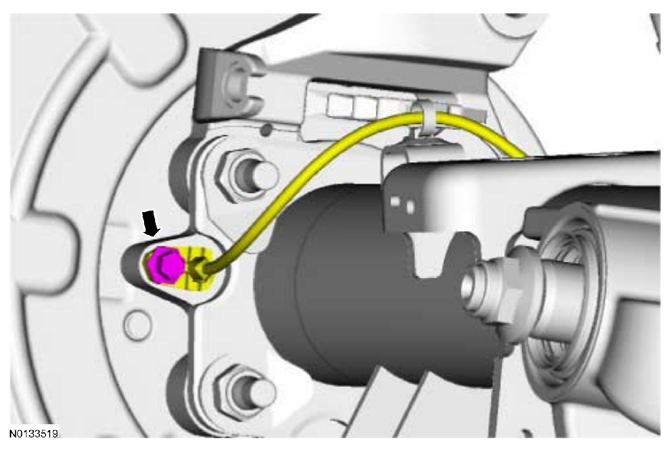

  Fig 1: Locating Rear Brake Disc Bolt
  Courtesy of FORD MOTOR CO.
Remove the differential housing cover and drain the lubricant. For additional information, refer to DIFFERENTIAL HOUSING COVER .
Discard the specified component. Follow local disposal regulations.
- To install, tighten to 30 Nm (22 lb-ft).

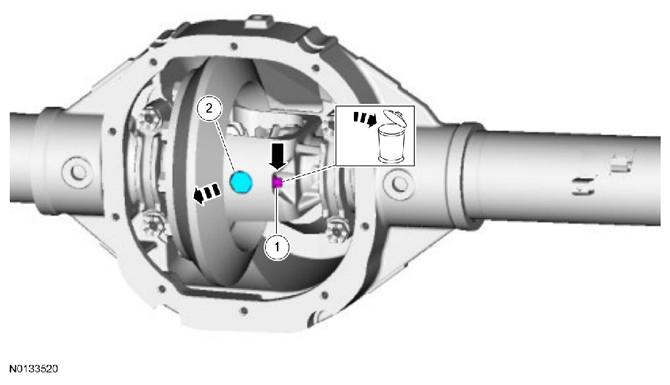

Fig 2: Identifying Differential Housing Cap And Bolt
Courtesy of FORD MOTOR CO.

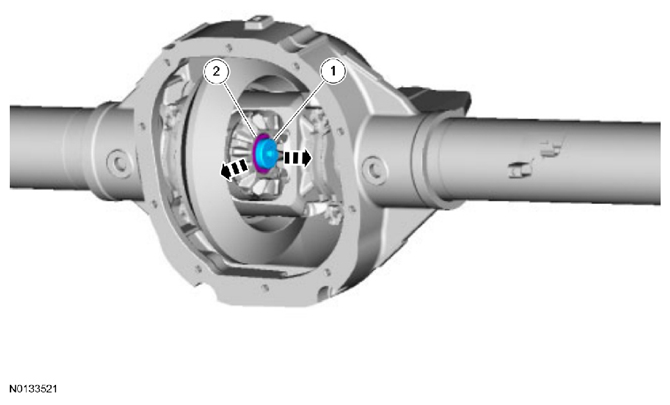

Fig 3: Removing Differential Bearing Cup And Shim

Courtesy of FORD MOTOR CO.

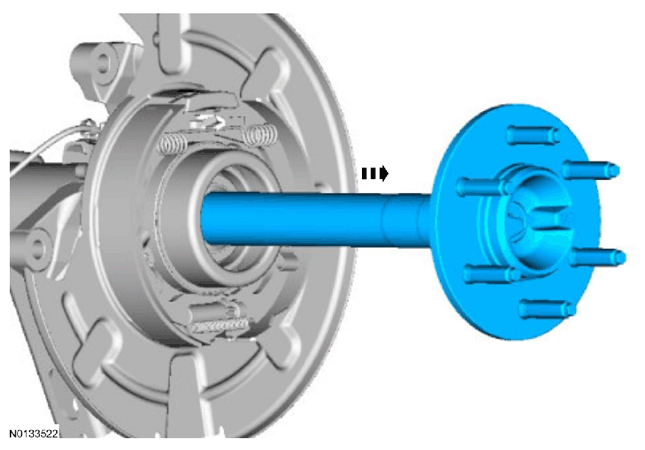

Fig 4: Removing Rear Axle Shaft

Courtesy of FORD MOTOR CO.

To install, reverse the removal procedure.
- Inspect and lubricate the lip of the wheel bearing oil seal with grease.
