Special Tool(s)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
G08339563
 Lifting Bracket, Engine 303-F047 (014-00073) or equivalent
G08339564
 Support Brackets, Engine 303-1507 or equivalent
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. NOTE: Index-mark the hood hinge location to aid in hood installation.

    Remove the 4 bolts and the hood.

    Fig 1: Locating Hood Support And Mounting Bolts
    G08339565Courtesy of FORD MOTOR CO.
  3. NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

    Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD  procedure.

  4. Detach the wiring harness pin-type retainer from the rear of the RH valve cover.

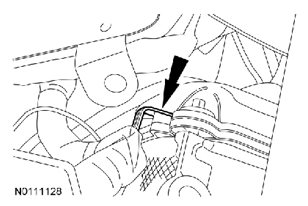

    Fig 2: Locating RH Valve Cover Wiring Harness Pin-Type Retainer
    G08339566Courtesy of FORD MOTOR CO.
  5. Remove the accessory drive belt.
  6. Remove the cooling module. For additional information, refer to ENGINE COOLING SYSTEM .
  7. Position the Power Distribution Box (PDB) and wiring harness forward.
  8. Remove the starter. For additional information, refer to STARTING SYSTEM .
  9. Detach the starter motor wiring harness pin-type retainer from the oil pan.

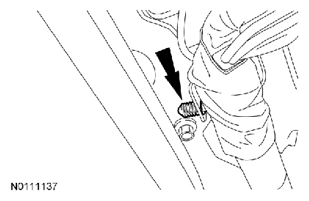

    Fig 3: Locating Oil Pan Starter Motor Wiring Harness Pin-Type Retainer
    G08339567Courtesy of FORD MOTOR CO.
  10. Remove the 2 bolts and the flexplate inspection cover.

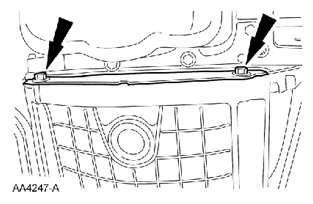

    Fig 4: Locating Flexplate Inspection Cover Mounting Bolts
    G08339568Courtesy of FORD MOTOR CO.

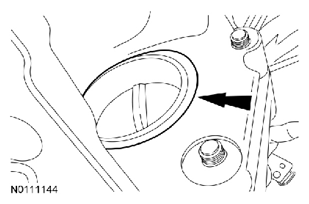

  11. Remove the cylinder block opening cover.
    Fig 5: Locating Cylinder Block Opening Cover
    G08339569Courtesy of FORD MOTOR CO.
  12. Remove the 4 torque converter-to-flexplate nuts.
    • Discard the nuts.
      Fig 6: Locating Torque Converter-To-Flexplate Nuts
      G08339570Courtesy of FORD MOTOR CO.
  13. NOTE: The torque converter must be installed in it's original orientation to the flexplate or engine damage may occur.

    Rotate the flexplate so that the 2 sloted holes are shown at the 6 o'clock position and index mark the torque converter stud to the flexplate to maintain alignment during installation.

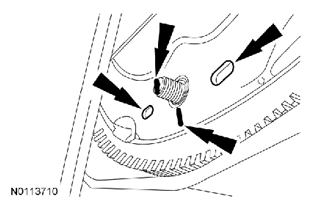

    Fig 7: Locating Flexplate Slotted Holes
    G08339571Courtesy of FORD MOTOR CO.
  14. NOTE: The upper 2 transmission-to-engine bolts will be removed later.

    Remove the lower 5 transmission-to-engine bolts.

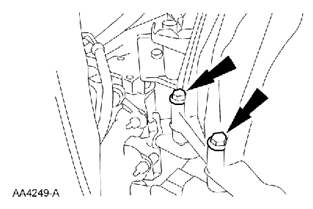

    Fig 8: Identifying Lower Transmission-To-Engine Bolts
    G08339572Courtesy of FORD MOTOR CO.

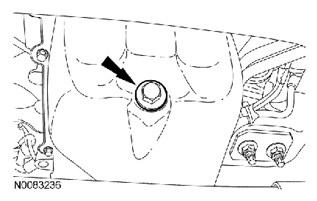

  15. Remove the drain plug and drain the engine oil. Install the drain plug when finished.
    • Tighten to 23 Nm (17 lb-ft).
      Fig 9: Locating Drain Plug
      G08339573Courtesy of FORD MOTOR CO.

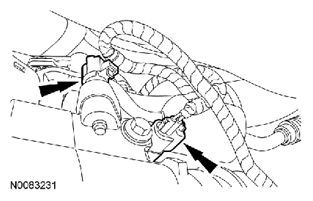

  16. Disconnect the A/C compressor electrical connector and the wiring harness retainer.
    Fig 10: Locating A/C Compressor Electrical Connector And Wiring Harness Retainer
    G08339574Courtesy of FORD MOTOR CO.

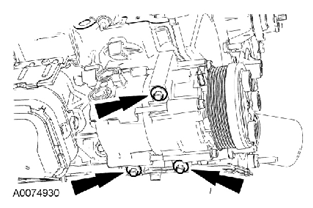

  17. Remove the 3 bolts and position the A/C compressor aside.
    Fig 11: Locating A/C Compressor Bolts
    G08339575Courtesy of FORD MOTOR CO.
  18. Remove the nut and the starter wiring harness retainer push pin and position aside the starter wiring harness and transmission cooler tube support bracket.
    Fig 12: Locating Transmission Cooler Tube Support Bracket Mounting Nut
    G08339576Courtesy of FORD MOTOR CO.
  19. If equipped, disconnect the block heater electrical connector.

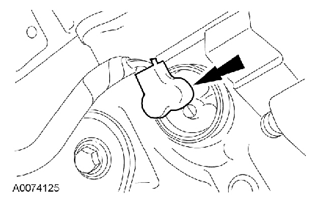

    Fig 13: Locating Block Heater Electrical Connector
    G08339577Courtesy of FORD MOTOR CO.
  20. Remove the 4 exhaust Y-pipe flange nuts.
    Fig 14: Locating Exhaust Manifold Flange Nuts
    G08339578Courtesy of FORD MOTOR CO.
  21. NOTE: Only use hand tools when removing the engine support insulator nuts or the engine support insulator may be damaged.
    NOTE: If during nut removal the stud bolt is extracted from the engine support insulator, separate the nut from the stud bolt prior to stud bolt installation.

    Remove the 2 RH engine support insulator nuts and studs.

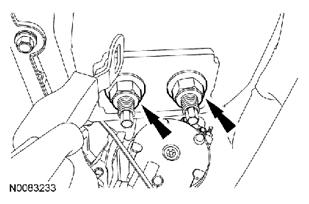

    Fig 15: Locating RH Engine Support Insulator Nuts
    G08339579Courtesy of FORD MOTOR CO.
  22. If equipped, remove the front drive shaft. For additional information, refer to DRIVESHAFT .

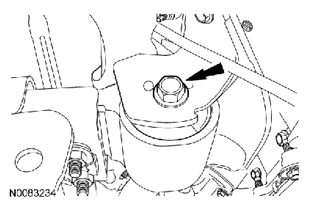

  23. NOTE: Only use hand tools when loosening the engine support insulator through bolt or the engine support insulator may be damaged.

    Remove the LH engine support insulator bolt.

    Fig 16: Locating LH Engine Support Insulator Bolt
    G08339580Courtesy of FORD MOTOR CO.
  24. Loosen the 2 transmission mount nuts.

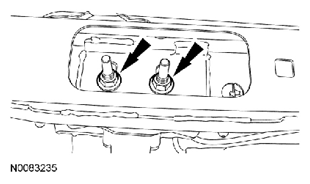

    Fig 17: Locating Transmission Mount Nuts
    G08339581Courtesy of FORD MOTOR CO.

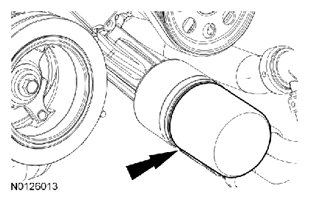

  25. Remove and discard the oil filter.
    Fig 18: Locating Oil Filter
    G08339582Courtesy of FORD MOTOR CO.
  26. Disconnect the lower radiator hose from the oil filter.

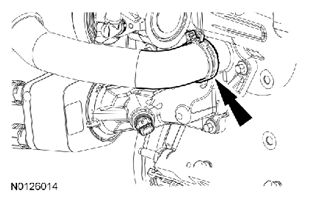

    Fig 19: Locating Oil Filter Lower Radiator Hose Clamp
    G08339583Courtesy of FORD MOTOR CO.
  27. Remove the oil cooler threaded shaft and position aside the oil cooler assembly.

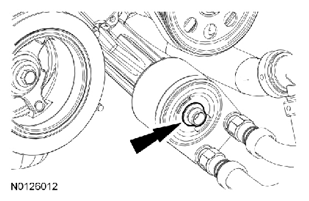

    Fig 20: Locating Oil Cooler Assembly Threaded Shaft
    G08339584Courtesy of FORD MOTOR CO.
  28. NOTE: While servicing the power steering system, care should be taken to prevent the entry of foreign material or failure of the power steering components may result.

    Remove the bolt and detach the power steering return hose from the steering gear.

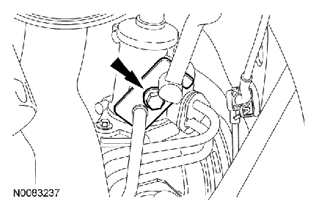

    Fig 21: Locating Power Steering Return Hose Mounting Bolt
    G08339585Courtesy of FORD MOTOR CO.
  29. Remove the power steering pump. For additional information, refer to POWER STEERING SYSTEM

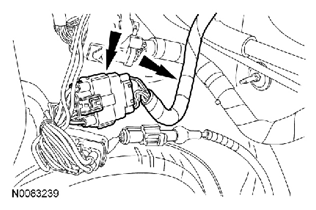

  30. Disconnect electrical connector and detach the connector and wiring harness retainers.
    Fig 22: Locating Engine Harness Electrical Connector And Wiring Harness Retainer
    G08339586Courtesy of FORD MOTOR CO.

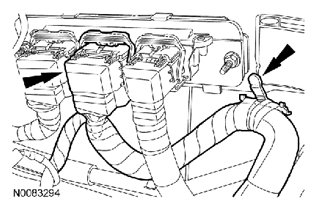

  31. Disconnect the PCM electrical connector and the engine wiring harness retainer and position the engine wiring harness aside.
    Fig 23: Locating PCM Electrical Connector And Engine Wiring Harness Retainer
    G08339587Courtesy of FORD MOTOR CO.
  32. Remove the ground strap bolt.

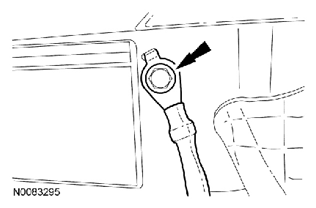

    Fig 24: Locating Ground Strap Bolt
    G08339588Courtesy of FORD MOTOR CO.
  33. Disconnect the 2 heater hoses.
  34. Support the transmission.
  35. NOTE: On Four-Wheel Drive (4WD), it may be necessary to reposition the transfer case vent hose to access the bolts.

    Remove the upper 2 transmission-to-engine bolts.

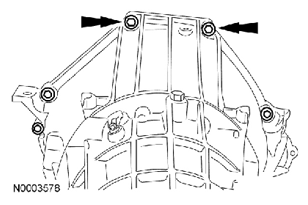

    Fig 25: Locating Upper Transmission-To-Engine Mounting Bolts
    G08339589Courtesy of FORD MOTOR CO.
  36. Install the Engine Lifting Bracket and Engine Support Brackets.
    Fig 26: Installing/Removing Engine Lifting Bracket And Engine Support Brackets
    G08339590Courtesy of FORD MOTOR CO.
  37. Remove the 2 bolts and the coolant expansion tank.
  38. Remove the steering column shaft-to-steering gear bolt and disconnect the steering column shaft.
  39. Using the Heavy Duty Floor Crane and the Engine Lifting Bracket, raise the engine assembly to gain access to the 3 LH engine support insulator bolts.
  40. Remove the 2 bolts and the LH exhaust manifold heat shield.

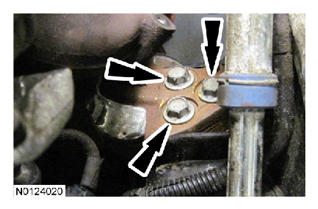

  41. Remove the 3 LH engine support Insulator bolts.
    Fig 27: Locating LH Engine Support Insulator Bolts
    G08339591Courtesy of FORD MOTOR CO.
  42. Remove the LH engine support insulator from under the vehicle.

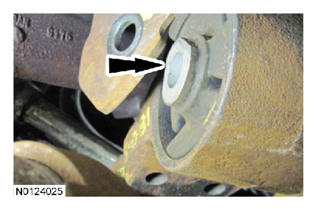

    Fig 28: Locating LH Engine Support Insulator
    G08339592Courtesy of FORD MOTOR CO.
  43. Using a floor crane, remove the engine assembly from the vehicle.
