Cylinder Head: Material

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
Item Specification
Motorcraft® Metal Surface Prep ZC-31-A -
Motorcraft® Silicone Gasket Remover ZC-30 -
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE: The flexplate and spacer plate must be removed before mounting the engine on the engine stand.
NOTE: For additional information, refer to the exploded view under the ASSEMBLY  procedure .

All cylinder heads

  1. Remove the engine. For additional information, refer to ENGINE  procedure.
  2. Remove the 8 bolts and the flexplate.
    • Discard the 8 flexplate bolts.
      Fig 1: Locating Flexplate Bolts
      G08339598Courtesy of FORD MOTOR CO.
  3. Remove the spacer plate.

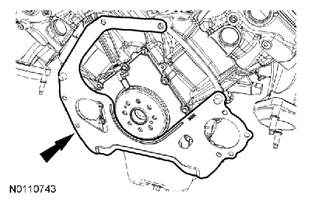

    Fig 2: Locating Spacer Plate
    G08339599Courtesy of FORD MOTOR CO.
  4. Disconnect the electrical connector and remove the bolt and the Crankshaft Position (CKP) sensor.

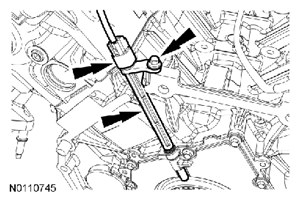

    Fig 3: Locating Crankshaft Position (CKP) Sensor, Electrical Connector And Bolt
    G08339600Courtesy of FORD MOTOR CO.
  5. Mount the engine on a work stand.
  6. Remove the Engine Lifting Brackets.
    Fig 4: Installing/Removing Engine Lifting Bracket And Engine Support Brackets
    G08339601Courtesy of FORD MOTOR CO.
  7. Disconnect the Engine Oil Pressure (EOP) switch electrical connector.

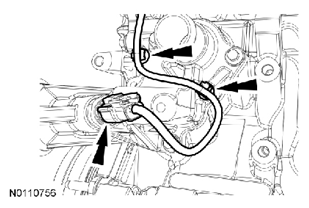

    Fig 5: Locating Engine Oil Pressure (EOP) Switch Electrical Connector And Wiring Harness Retainers
    G08339602Courtesy of FORD MOTOR CO.
  8. Disconnect the LH Variable Camshaft Timing (VCT) variable force solenoid electrical connector and the 2 wiring harness retainers.
    Fig 6: Locating LH VCT Variable Force Solenoid Electrical Connector And Wiring Harness Retainers
    G08339603Courtesy of FORD MOTOR CO.
  9. Disconnect the 3 engine wiring harness position retainers from the LH valve cover.

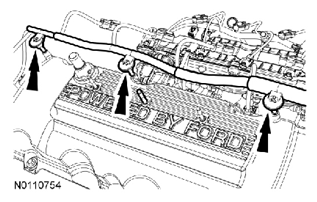

    Fig 7: Locating LH Valve Cover Engine Wiring Harness Position Retainers
    G08339604Courtesy of FORD MOTOR CO.
  10. Disconnect the wiring harness retainer, the Knock Sensor (KS) and Cylinder Head Temperature (CHT) sensor electrical connector.
    Fig 8: Locating Wiring Harness Retainer, Knock Sensor And Cylinder Head Temperature Sensor Electrical Connector
    G08339605Courtesy of FORD MOTOR CO.
  11. Disconnect the LH and RH Camshaft Position (CMP) sensor electrical connectors.
    Fig 9: Locating LH And RH Camshaft Position Sensor Electrical Connectors
    G08339606Courtesy of FORD MOTOR CO.
  12. Remove the nut and the wiring harness ground cable.

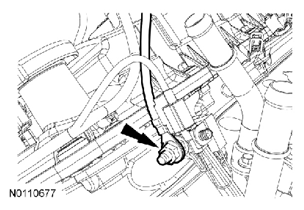

    Fig 10: Locating Wiring Harness Ground Cable Mounting Nut
    G08339607Courtesy of FORD MOTOR CO.
  13. Remove the nut and the radio interference capacitor.

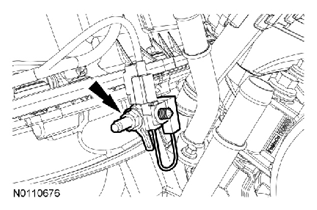

    Fig 11: Locating Radio Ignition Interference Capacitor And Nut
    G08339608Courtesy of FORD MOTOR CO.
  14. Disconnect the RH VCT variable force solenoid electrical connector and the 2 wiring harness retainers.

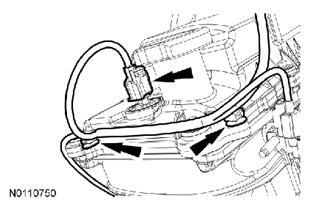

    Fig 12: Locating RH VCT Variable Force Solenoid Electrical Connector And Harness Retainers
    G08339609Courtesy of FORD MOTOR CO.
  15. Disconnect the 3 engine wiring harness position retainers from the RH valve cover and remove the engine wiring harness.

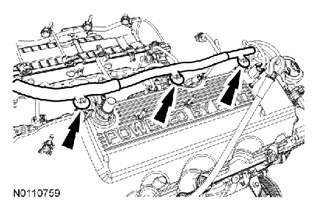

    Fig 13: Locating Engine Wiring Harness Position Retainers
    G08339610Courtesy of FORD MOTOR CO.
  16. NOTE: RH shown in illustration, LH similar.

    Disconnect the 8 ignition wires from the valve cover retainers and the lower spark plugs.

    Fig 14: Locating Lower Spark Plugs
    G08339611Courtesy of FORD MOTOR CO.
  17. Remove the 2 bolts and the LH and RH CMP sensors.
    Fig 15: Locating LH And RH CMP Sensors Mounting Bolts
    G08339612Courtesy of FORD MOTOR CO.
  18. Remove the bolt and the oil level indicator tube.
    • Discard the O-ring seal.

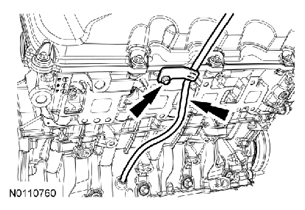

      Fig 16: Locating Oil Level Indicator Tube And Bolt
      G08339613Courtesy of FORD MOTOR CO.
  19. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: Remove the valve cover carefully, or the Variable Camshaft Timing (VCT) variable force solenoid may be damaged.
    NOTE: The bolts are part of the valve cover and should not be removed.

    Loosen the 10 bolts and remove the LH valve cover.

    • Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Discard the valve cover gasket. Clean the valve cover gasket groove with soap and water or a suitable solvent.

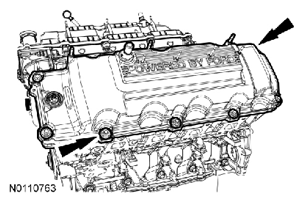

      Fig 17: Locating LH Valve Cover Mounting Bolts
      G08339614Courtesy of FORD MOTOR CO.
  20. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.
    NOTE: Remove the valve cover carefully, or the Variable Camshaft Timing (VCT) variable force solenoid may be damaged.
    NOTE: The bolts are part of the valve cover and should not be removed.

    Loosen the 10 bolts and remove the RH valve cover.

    • Clean the valve cover mating surface of the cylinder head with silicone gasket remover and metal surface prep. Follow the directions on the packaging.
    • Discard the valve cover gasket. Clean the valve cover gasket groove with soap and water or a suitable solvent.
      Fig 18: Locating RH Valve Cover And Bolts
      G08339615Courtesy of FORD MOTOR CO.
  21. Remove the 6 bolts, the coolant pump pulley and the 2 accessory drive belt idler pulleys.

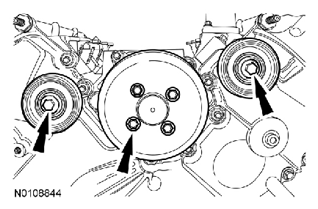

    Fig 19: Locating Coolant Pump Pulley, Accessory Drive Belt Idler Pulley And Bolts
    G08339616Courtesy of FORD MOTOR CO.
  22. Remove the 3 bolts and the accessory drive belt tensioner.

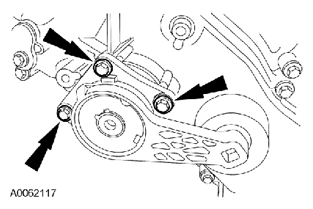

    Fig 20: Identifying Accessory Drive Belt Tensioner Mounting Bolts
    G08339617Courtesy of FORD MOTOR CO.
  23. Using the 3 Jaw Puller and Step Plate, remove the crankshaft pulley.

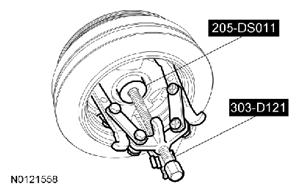

    Fig 21: Removing Crankshaft Pulley Using 3 Jaw Puller And Step Plate
    G08339618Courtesy of FORD MOTOR CO.
  24. NOTE: Use care not to damage the engine front cover or the crankshaft when removing the seal.

    Using the Oil Seal Remover, remove the crankshaft front oil seal.

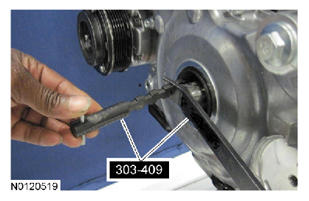

    Fig 22: Removing Crankshaft Front Oil Seal Using Oil Seal Remover
    G08339619Courtesy of FORD MOTOR CO.
  25. Remove the front 4 oil pan bolts.
    Fig 23: Locating Front Oil Pan Bolts
    G08339620Courtesy of FORD MOTOR CO.
  26. NOTE: Correct fastener location is essential for the assembly procedure. Record fastener location.

    Remove the 17 bolts and the 3 studs.

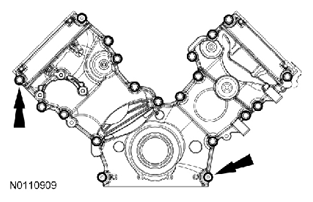

    Fig 24: Locating Engine Front Cover Studs And Bolts
    G08339621Courtesy of FORD MOTOR CO.
  27. Remove the engine front cover from the front cover-to-cylinder block dowel.
    • Remove and discard the engine front cover gaskets.
      Fig 25: Removing Engine Front Cover Gaskets
      G08339622Courtesy of FORD MOTOR CO.
  28. Rotate the engine clockwise until the No. 1 intake valve is open.
  29. Remove the 10 bolts and the LH intake rocker arm shaft assembly.

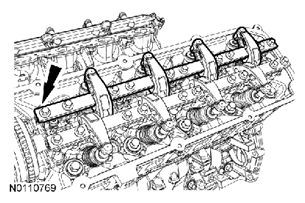

    Fig 26: Locating LH Intake Rocker Arm Shaft Assembly Mounting Bolts
    G08339623Courtesy of FORD MOTOR CO.
  30. Rotate the engine clockwise until the No. 1 exhaust valve is open.
  31. Remove the 10 bolts and the LH exhaust rocker arm shaft assembly.
    Fig 27: Locating LH Exhaust Rocker Arm Shaft Assembly Mounting Bolts
    G08339624Courtesy of FORD MOTOR CO.
  32. Rotate the engine clockwise until the No. 1 intake valve is closed.
  33. Remove the 10 bolts and the RH intake rocker arm shaft assembly.
    Fig 28: Locating RH Intake Rocker Arm Shaft Assembly Mounting Bolts
    G08339625Courtesy of FORD MOTOR CO.
  34. Rotate the engine clockwise until the No. 1 exhaust valve is closed.
  35. Remove the 10 bolts and the RH exhaust rocker arm shaft assembly.
    Fig 29: Locating RH Exhaust Rocker Arm Shaft Assembly Mounting Bolts
    G08339626Courtesy of FORD MOTOR CO.
  36. Position the crankshaft keyway at the 11 o'clock position.

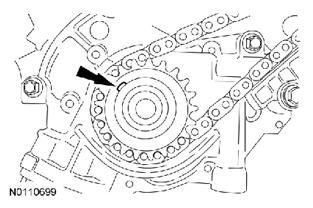

    Fig 30: Locating Crankshaft Keyway
    G08339627Courtesy of FORD MOTOR CO.
  37. Remove the 2 bolts, the RH timing chain tensioner and tensioner arm.

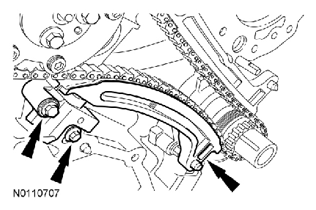

    Fig 31: Locating RH Timing Chain Tensioner And Tensioner Arm Bolts
    G08339628Courtesy of FORD MOTOR CO.
  38. Remove the bolt and the RH timing chain guide.

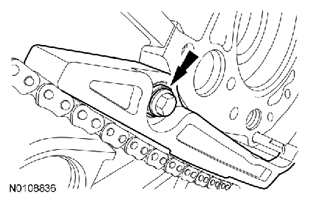

    Fig 32: Locating RH Timing Chain Guide Mounting Bolt
    G08339629Courtesy of FORD MOTOR CO.
  39. Remove the RH timing chain.

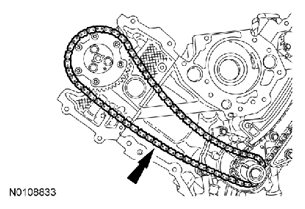

    Fig 33: Locating RH Timing Chain
    G08339630Courtesy of FORD MOTOR CO.
  40. Remove the 2 bolts and the LH timing chain tensioner.

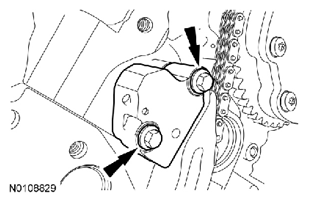

    Fig 34: Locating LH Timing Chain Tensioner Mounting Bolts
    G08339631Courtesy of FORD MOTOR CO.
  41. Remove the LH timing chain tensioner arm.
    Fig 35: Locating LH Timing Chain Tensioner Arm
    G08339632Courtesy of FORD MOTOR CO.
  42. Remove the bolt and the LH timing chain guide.

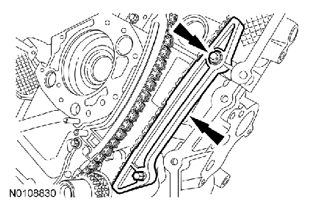

    Fig 36: Locating LH Timing Chain Guide And Mounting Bolt
    G08339633Courtesy of FORD MOTOR CO.
  43. Remove the LH timing chain.
    Fig 37: Locating LH Timing Chain
    G08339634Courtesy of FORD MOTOR CO.

    LH cylinder head

  44. Remove the 2 bolts and the LH exhaust manifold heat shield.
    Fig 38: Locating Exhaust Shield And Mounting Bolts
    G08339635Courtesy of FORD MOTOR CO.
  45. Remove the 8 nuts, the 8 studs, the LH exhaust manifold and gaskets.
    • Discard the 8 nuts and the 8 studs.
    • Discard the 2 gasket.
    • Inspect the exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
      Fig 39: Locating LH Exhaust Manifold Mounting Bolts
      G08339636Courtesy of FORD MOTOR CO.
  46. NOTE: The cylinder head must be cool before removing it from the engine. Cylinder head warpage may result if a warm or hot cylinder head is removed.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine.
    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface, or the cylinder head may be damaged.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

    Remove the 11 bolts and the LH cylinder head.

    • Discard the cylinder head gasket.
    • Discard the 11 cylinder head bolts.
      Fig 40: Locating LH Cylinder Head Mounting Bolts
      G08339637Courtesy of FORD MOTOR CO.

      RH cylinder head

  47. Remove the 2 bolts and the RH exhaust manifold heat shield.

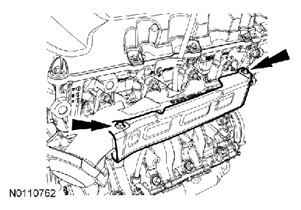

    Fig 41: Locating RH Exhaust Manifold Heat Shield And Bolts
    G08339638Courtesy of FORD MOTOR CO.
  48. Remove the 8 nuts, the 8 studs, the RH exhaust manifold and gaskets.
    • Discard the 8 nuts and the 8 studs.
    • Discard the 2 gasket.
    • Inspect the exhaust manifold. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .

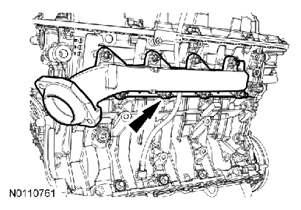

      Fig 42: Locating RH Exhaust Manifold Gaskets Mounting Nuts And Studs
      G08339639Courtesy of FORD MOTOR CO.
  49. Remove the nut and the ground strap.

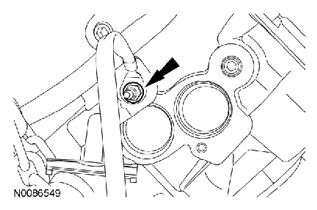

    Fig 43: Locating Ground Strap Nut
    G08339640Courtesy of FORD MOTOR CO.
  50. NOTE: The cylinder head must be cool before removing it from the engine. Cylinder head warpage may result if a warm or hot cylinder head is removed.
    NOTE: Place clean shop towels over exposed engine cavities. Carefully remove the towels so foreign material is not dropped into the engine.
    NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Aluminum surfaces are soft and can be scratched easily. Never place the cylinder head gasket surface, unprotected, on a bench surface, or the cylinder head may be damaged.
    NOTE: The cylinder head bolts must be discarded and new bolts must be installed. They are a tighten-to-yield design and cannot be reused.

    Remove the 10 bolts and the RH cylinder head.

    • Discard the cylinder head gasket.
    • Discard the 11 cylinder head bolts.

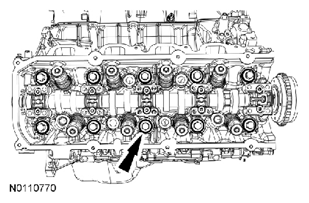

      Fig 44: Locating RH Cylinder Head Mounting Bolts
      G08339641Courtesy of FORD MOTOR CO.

    All cylinder heads

  51. NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges that make leak paths. Use a plastic scraping tool to remove all traces of the head gasket.
    NOTE: Observe all warnings or cautions and follow all application directions contained on the packaging of the silicone gasket remover and the metal surface prep.
    NOTE: If there is no residual gasket material present, metal surface prep can be used to clean and prepare the surfaces.

    Clean the cylinder head-to-cylinder block mating surfaces of both the cylinder head and the cylinder block in the following sequence.

    1. Remove any large deposits of silicone or gasket material with a plastic scraper.
    2. Apply silicone gasket remover, following package directions and allow to set for several minutes.
    3. Remove the silicone gasket remover with a plastic scraper. A second application of silicone gasket remover may be required if residual traces of silicone or gasket material remain.
    4. Apply metal surface prep, following package directions, to remove any remaining traces of oil or coolant and to prepare the surfaces to bond with the new gasket. Do not attempt to make the metal shiny. Some staining of the metal surfaces is normal.
  52. Support the cylinder heads on a bench with the head gasket side up. Check the cylinder head distortion and the cylinder block distortion, paying particular attention to the oil pressure feed area. For additional information, refer to ENGINE SYSTEM - GENERAL INFORMATION .
