Valve Cover - RH: Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If the valve cover is not secured within 5 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 5 minutes, whichever is longer. Failure to follow this procedure can cause future oil leakage.

Apply a bead of silicone gasket and sealant in 2 places where the engine front cover meets the cylinder head.

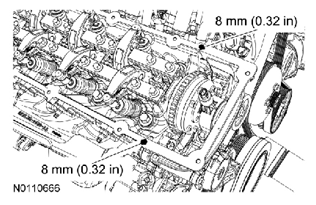

Fig 1: Identifying Bead Of Silicone Gasket And Sealant Applying Area On Engine Front Cover To Cylinder Head
Courtesy of FORD MOTOR CO.
NOTE: When installing the valve cover, make sure to avoid damaging the Variable Camshaft Timing (VCT) solenoid.

Position the RH valve cover and new gasket on the cylinder head and tighten the 10 fasteners in the sequence shown in illustration.
- Tighten to 10 Nm (89 lb-in).

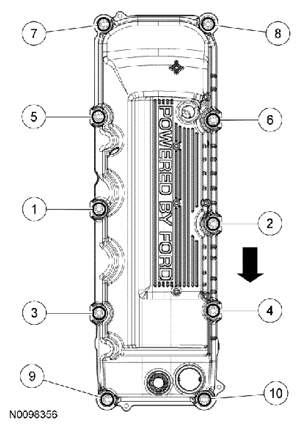

  Fig 2: Identifying Tightening Sequence Of Cylinder Head RH Valve Cover Fasteners
  Courtesy of FORD MOTOR CO.
Connect the 6 wiring harness retainers to the RH valve cover.
Connect the RH VCT solenoid electrical connector.
Connect the 4 RH ignition wire retainers to the valve cover.
Connect the 4 RH ignition wires to the 4 RH ignition coils.
Position the PCV tube and connect the quick connect couplings. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .
