Timing Drive Components: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER  .
  2. Disconnect the 8 ignition wires from the lower 8 spark plugs.
  3. NOTE: Only use hand tools when removing or installing the spark plugs or damage can occur to the cylinder head or spark plug.
    NOTE: Use compressed air to remove any foreign material from the spark plug well before removing the spark plugs.

    Remove the lower 8 spark plugs.

  4. Rotate the engine clockwise until the No. 1 intake valve is open.
  5. Remove the 10 bolts and the LH intake rocker arm shaft assembly.

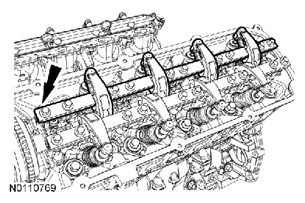

    Fig 1: Locating LH Intake Rocker Arm Shaft Assembly Mounting Bolts
    G08339383Courtesy of FORD MOTOR CO.
  6. Rotate the engine clockwise until the No. 1 exhaust valve is open.
  7. Remove the 10 bolts and the LH exhaust rocker arm shaft assembly.
    Fig 2: Locating LH Exhaust Rocker Arm Shaft Assembly Mounting Bolts
    G08339384Courtesy of FORD MOTOR CO.
  8. Rotate the engine clockwise until the No. 1 intake valve is closed.
  9. Remove the 10 bolts and the RH intake rocker arm shaft assembly.
    Fig 3: Locating RH Intake Rocker Arm Shaft Assembly Mounting Bolts
    G08339385Courtesy of FORD MOTOR CO.
  10. Rotate the engine clockwise until the No. 1 exhaust valve is closed.
  11. Remove the 10 bolts and the RH exhaust rocker arm shaft assembly.
    Fig 4: Locating RH Exhaust Rocker Arm Shaft Assembly Mounting Bolts
    G08339386Courtesy of FORD MOTOR CO.
  12. Position the crankshaft keyway at the 11 o'clock position.

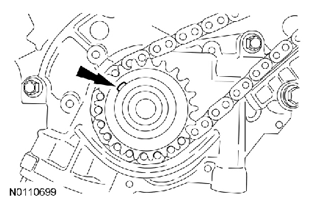

    Fig 5: Locating Crankshaft Keyway
    G08339387Courtesy of FORD MOTOR CO.
  13. Remove the 2 bolts, the RH timing chain tensioner and tensioner arm.

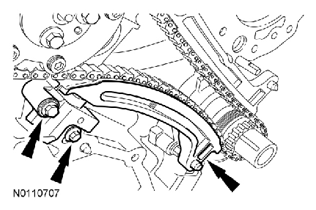

    Fig 6: Locating RH Timing Chain Tensioner And Tensioner Arm Mounting Bolts
    G08339388Courtesy of FORD MOTOR CO.
  14. Remove the bolt and the RH timing chain guide.

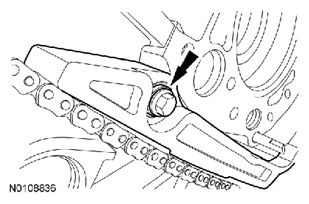

    Fig 7: Locating RH Timing Chain Guide Mounting Bolt
    G08339389Courtesy of FORD MOTOR CO.
  15. Remove the RH timing chain.

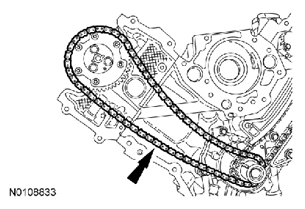

    Fig 8: Locating RH Timing Chain
    G08339390Courtesy of FORD MOTOR CO.
  16. Remove the 2 bolts and the LH timing chain tensioner.

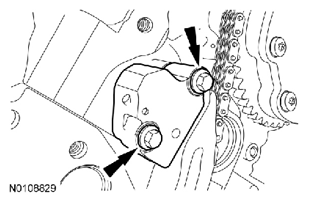

    Fig 9: Locating LH Timing Chain Tensioner Mounting Bolts
    G08339391Courtesy of FORD MOTOR CO.
  17. Remove the LH timing chain tensioner arm.
    Fig 10: Locating LH Timing Chain Tensioner Arm
    G08339392Courtesy of FORD MOTOR CO.
  18. Remove the bolt and the LH timing chain guide.

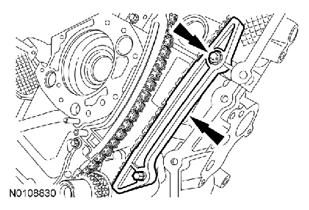

    Fig 11: Locating LH Timing Chain Guide And Mounting Bolt
    G08339393Courtesy of FORD MOTOR CO.
  19. Remove the LH timing chain.
    Fig 12: Locating LH Timing Chain
    G08339394Courtesy of FORD MOTOR CO.
  20. Remove the crankshaft sprocket.

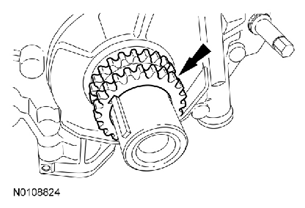

    Fig 13: Locating Crankshaft Sprocket
    G08339395Courtesy of FORD MOTOR CO.
