Timing Drive Components: Material

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Item	Specification
Silicone Brake Caliper Grease and Dielectric Compound XG-3-A	ESE-M1C171-A

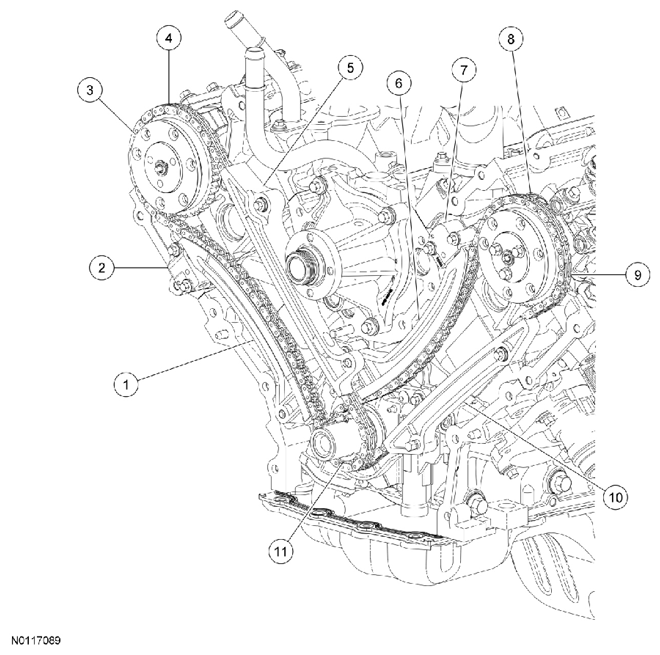

Fig 1: Identifying Timing Drive Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	6K255	RH timing chain tensioner arm
2	6L266	RH timing chain tensioner
3	6256	RH camshaft phaser and sprocket
4	6268	RH timing chain
5	6M256	RH timing chain guide
6	6K255	LH timing chain tensioner arm
7	6L266	LH timing chain tensioner
8	6268	LH timing chain
9	6256	LH camshaft phaser and sprocket
10	6B274	LH timing chain guide
11	6306	Crankshaft sprocket
