Oil Pump: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the timing drive components. For additional information, refer to TIMING DRIVE COMPONENTS  procedure.
  2. Remove the oil pan. For additional information, refer to OIL PAN  procedure.
  3. Remove the oil pump screen and pickup tube support bracket nut.
    Fig 1: Locating Oil Pump Pickup Tube Support Bracket Nut
    G08339500Courtesy of FORD MOTOR CO.
  4. Remove the 2 bolts and the oil pump screen and pickup tube.

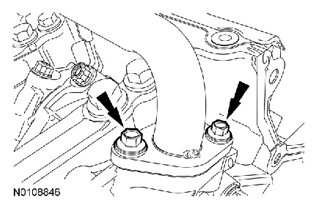

    Fig 2: Locating Oil Pump Pickup Tube Bolts
    G08339501Courtesy of FORD MOTOR CO.
  5. Remove the 2 upper bolts, the 2 lower stud bolts and the oil pump.

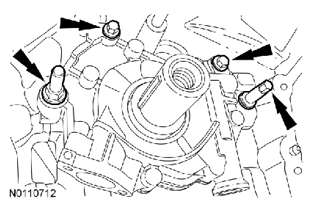

    Fig 3: Locating Oil Pump Upper Bolts And Lower Stud Bolts
    G08339502Courtesy of FORD MOTOR CO.
