Oil Pump Screen and Pickup Tube: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the oil pan. For additional information, refer to OIL PAN  procedure.
  2. Remove the oil pump screen and pickup tube support bracket nut.
    Fig 1: Locating Oil Pump Pickup Tube Support Bracket Nut
    G08339506Courtesy of FORD MOTOR CO.
  3. Remove the 2 bolts and the oil pump screen and pickup tube.

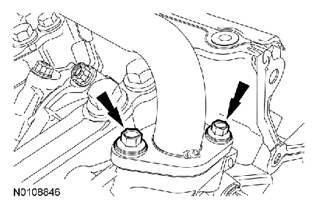

    Fig 2: Locating Oil Pump Pickup Tube Bolts
    G08339507Courtesy of FORD MOTOR CO.
