In-Vehicle Repair: Flexplate: Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the offset hole on the crankshaft ignition pulse ring aligned with the offset hole on the flexplate, position the flexplate and install 8 new bolts finger-tight.

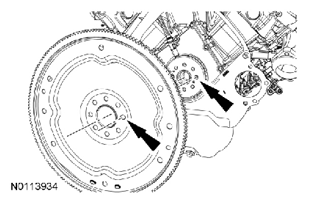

Fig 1: Locating Flexplate Bolts
Courtesy of FORD MOTOR CO.
Tighten the 8 new bolts in 6 stages.
- Stage 1: Tighten fasteners 1 through 4 in sequence to 20 Nm (177 lb-in).
- Stage 2: Tighten fasteners 1 through 4 in sequence to 35 Nm (26 lb-ft).
- Stage 3: Tighten fasteners 1 through 4 sequence an additional 60 degrees.
- Stage 4: Tighten fasteners 5 through 8 in sequence to 20 Nm (177 lb-in).
- Stage 5: Tighten fasteners 5 through 8 in sequence to 35 Nm (26 lb-ft).
- Stage 6: Tighten fasteners 5 through 8 in sequence an additional 60 degrees.

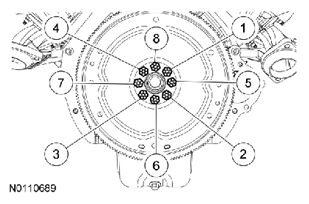

  Fig 2: Identifying Tightening Sequence Of Flexplate Bolts
  Courtesy of FORD MOTOR CO.
Verify that the 2 flexplate slotted holes are at the 6 o'clock position as shown prior to transmission installation.

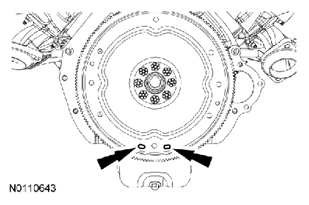

Fig 3: Locating Flexplate Slotted Holes
Courtesy of FORD MOTOR CO.
Install the transmission. For additional information, refer to AUTOMATIC TRANSMISSION (6R80) .
