Exhaust Manifold - RH: Material
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item |
Specification |
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |
Courtesy of FORD MOTOR CO.

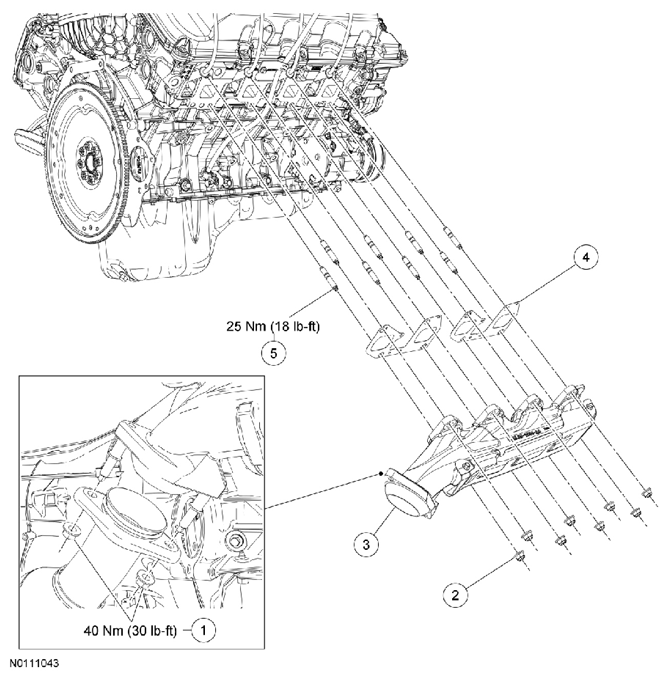

| Item |
Part Number |
Description |
| 1 |
W705443 |
Exhaust Y-pipe flange nuts (2 required) |
| 2 |
W701706 |
Exhaust manifold nut (8 required) |
| 3 |
9430 |
Exhaust manifold |
| 4 |
9Y431 |
Exhaust manifold gasket (2 required) |
| 5 |
W707747 |
Exhaust manifold stud (8 required) |
