Exhaust Manifold - LH

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

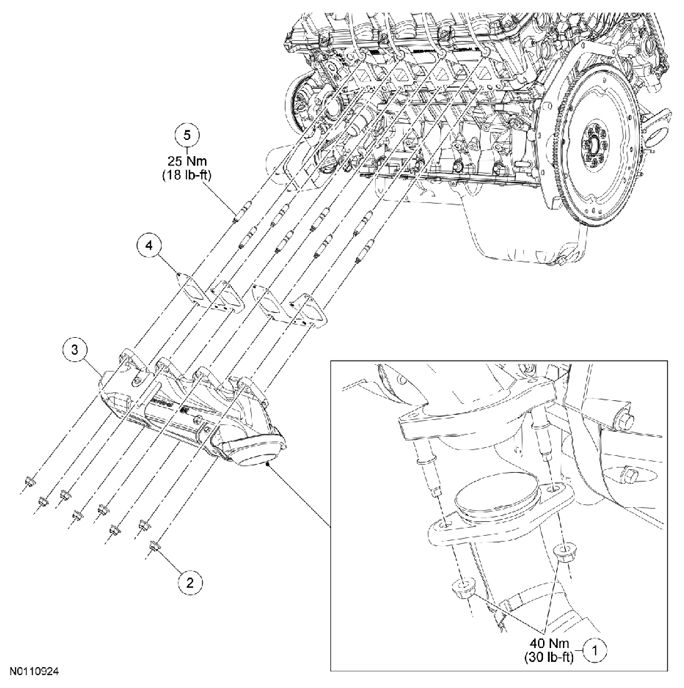

Fig 1: Exploded View Of LH Exhaust Manifold With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W705443	Exhaust Y-pipe flange nuts (2 required)
2	W714870	LH exhaust manifold nut (8 required)
3	9431	LH exhaust manifold
4	9448	LH exhaust manifold gasket (2 required)
5	W714869	Exhaust manifold-to-cylinder head stud (8 required)
