Crankshaft Pulley: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Rotate the tensioner clockwise and remove the accessory drive belt from the crankshaft pulley.

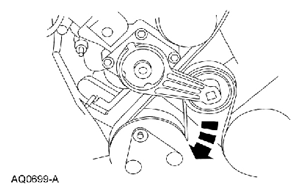

    Fig 1: Rotating Accessory Drive Belt Tensioner To Clockwise
    G08339329Courtesy of FORD MOTOR CO.
  3. Remove the crankshaft pulley bolt.
    • Discard the crankshaft pulley bolt.
  4. Using the 3 Jaw Puller and Step Plate, remove the crankshaft pulley.

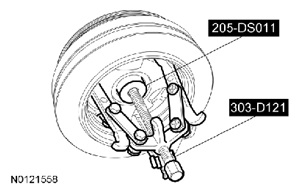

    Fig 2: Removing Crankshaft Pulley Using 3 Jaw Puller And Step Plate
    G08339330Courtesy of FORD MOTOR CO.
