Special Tool(s)

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

	2, 200# Floor Crane, Fold Away 300-OTC1819E
	Lifting Bracket, Engine 303-F047 (014-00073)

WARNING: Do not smoke, carry lighted tobacco or have an open flame of any type when working on or near any fuel-related component. Highly flammable mixtures are always present and may be ignited. Failure to follow these instructions may result in serious personal injury.

WARNING: Before working on or disconnecting any of the fuel tubes or fuel system components, relieve the fuel system pressure to prevent accidental spraying of fuel. Fuel in the fuel system remains under high pressure, even when the engine is not running. Failure to follow this instruction may result in serious personal injury.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
NOTE: Index-mark the hood hinge location to aid in hood installation.

NOTE: RH shown in illustration, LH similar.

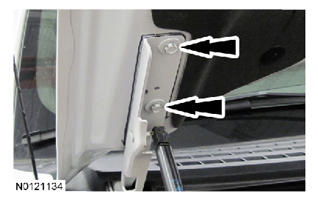

Remove the 4 bolts (2 shown) and the hood.

Fig 1: Locating Hood Bolts
Courtesy of FORD MOTOR CO.
Release the fuel system pressure. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .
Disconnect the battery ground cable. For additional information, refer to BATTERY, BATTERY MOUNTING & BATTERY CABLES .
NOTE: If the engine is repaired or replaced because of upper engine failure, typically including valve or piston damage, check the intake manifold for metal debris. If metal debris is found, install a new intake manifold. Failure to follow these instructions can result in engine damage.

Remove the intake manifold. For additional information, refer to INTAKE MANIFOLD .

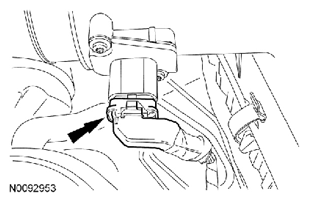

Disconnect the Mass Air Flow (MAF) sensor electrical connector.

Fig 2: Locating Mass Air Flow (MAF) Sensor Electrical Connector
Courtesy of FORD MOTOR CO.
Remove the Air Cleaner (ACL) upper tray and the ACL element. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
Remove the cooling module. For additional information, refer to ENGINE COOLING SYSTEM .

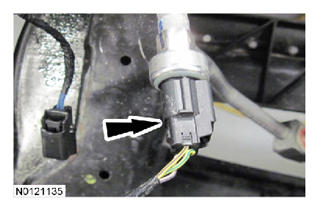

Disconnect the A/C pressure transducer electrical connector.

Fig 3: Locating A/C Pressure Transducer Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the wiring harness electrical connector and pin-type retainer.
- Position the Power Distribution Box (PDB) and wiring harness aside.

  Fig 4: Locating Wiring Harness Electrical Connector And Pin-Type Retainer
  Courtesy of FORD MOTOR CO.

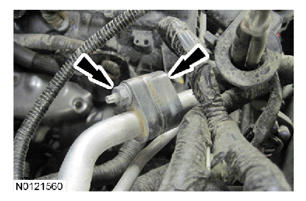

Remove the nut and disconnect the A/C tube.
- Discard the O-ring seal and gasket.

  Fig 5: Locating A/C Tube And Nut
  Courtesy of FORD MOTOR CO.

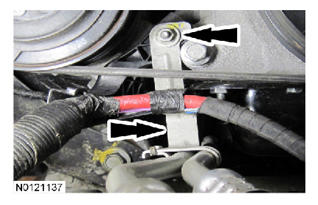

Remove the nut and the transmission cooler line bracket from the engine front cover stud bolt.

Fig 6: Locating Nut And Transmission Cooler Line Bracket
Courtesy of FORD MOTOR CO.

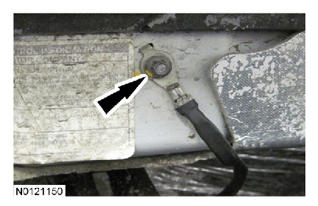

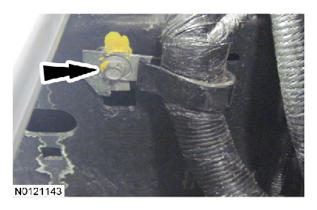

Remove the bolt and the ground wire from the RH frame rail.

Fig 7: Locating RH Frame Rail Bolt
Courtesy of FORD MOTOR CO.
Remove the bolt and the wiring harness bracket from the RH frame rail.

Fig 8: Locating RH Frame Rail Bolt
Courtesy of FORD MOTOR CO.

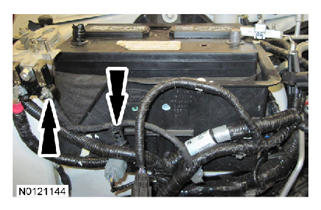

Remove the nut and disconnect the B+ wire.
- Detach the wiring harness retainer from the battery tray.

  Fig 9: Locating Nut And Wiring Harness Retainer
  Courtesy of FORD MOTOR CO.

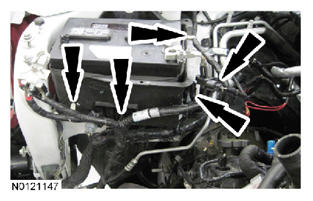

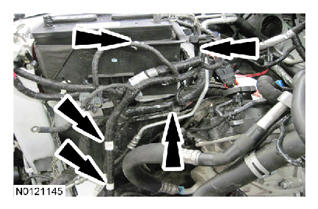

Detach the 5 wiring harness retainers.

Fig 10: Locating Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
Disconnect the 2 wiring harness connectors and detach the 3 wiring harness retainers.

Fig 11: Locating Wiring Harness Connectors And Retainers
Courtesy of FORD MOTOR CO.

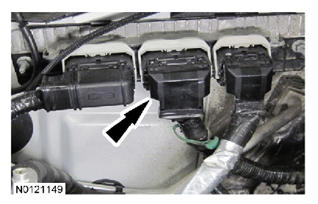

Disconnect the middle PCM electrical connector.

Fig 12: Locating Middle PCM Electrical Connector
Courtesy of FORD MOTOR CO.

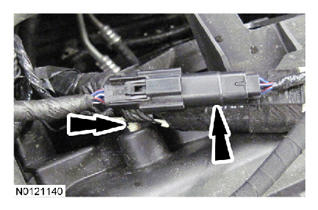

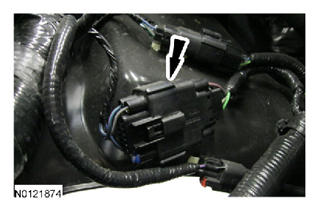

Detach and disconnect the engine harness electrical connector.

Fig 13: Locating Engine Harness Electrical Connector
Courtesy of FORD MOTOR CO.

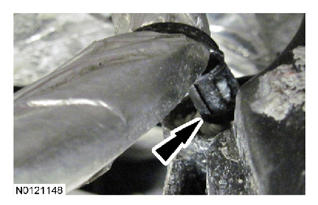

Detach the PCM wiring harness retainer from the valve cover bolt stud.

Fig 14: Locating PCM Wiring Harness Retainer
Courtesy of FORD MOTOR CO.

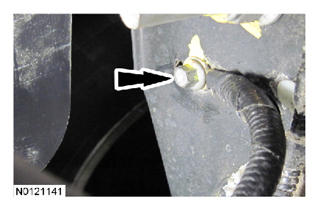

Remove the bolt and the ground strap from the cowl.

Fig 15: Locating Cowl Bolt
Courtesy of FORD MOTOR CO.

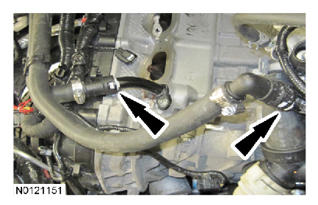

Disconnect the 2 heater hose quick connect couplings. For additional information, refer to HVAC - CLIMATE CONTROL SYSTEM (GENERAL INFORMATION & ELECTRICAL DIAGNOSTICS) .

Fig 16: Locating Heater Hose Quick Connect Couplings
Courtesy of FORD MOTOR CO.

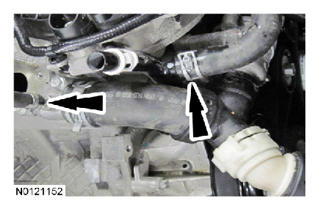

Disconnect the 2 coolant hoses and position aside.

Fig 17: Locating Coolant Hoses Clamp
Courtesy of FORD MOTOR CO.

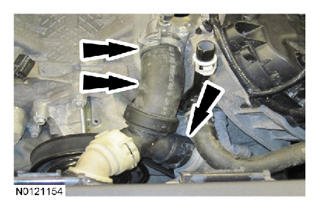

Remove the spring clip, the clamp and disconnect the coolant bypass T assembly from the engine.

Fig 18: Locating Spring Clip, Clamp And Coolant Bypass T Assembly
Courtesy of FORD MOTOR CO.

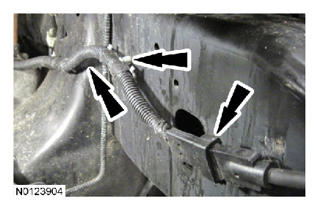

If equipped, disconnect the block heater electrical connector and the 2 wiring harness retainers.

Fig 19: Locating Block Heater Electrical Connector And Wiring Harness Retainers
Courtesy of FORD MOTOR CO.
If equipped, remove the front driveshaft. For additional information, refer to DRIVESHAFT .
Remove the starter. For additional information, refer to STARTING SYSTEM .

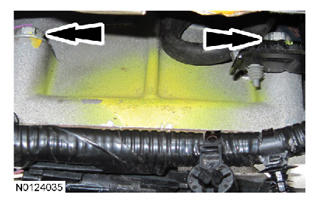

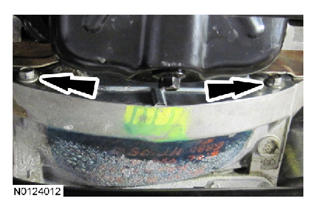

Remove the 2 bolts and the flexplate inspection cover.

Fig 20: Locating Flexplate Inspection Cover Bolts
Courtesy of FORD MOTOR CO.

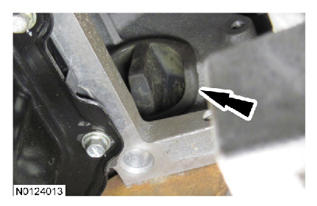

Remove the cylinder block opening cover.

Fig 21: Locating Cylinder Block Opening Cover
Courtesy of FORD MOTOR CO.
NOTE: Index-mark the end of one torque converter stud and the flexplate for installation.

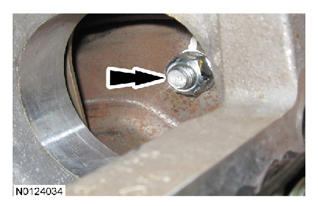

Remove the 4 torque converter-to-flexplate nuts.
- Discard the nuts.

  Fig 22: Locating Torque Converter-To-Flexplate Nuts
  Courtesy of FORD MOTOR CO.
NOTE: The 2 upper transmission-to-engine bolts will be removed later.

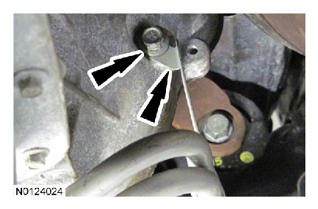

Remove the transmission-to-engine bolt and transmission cooler tube support bracket.

Fig 23: Locating Transmission-To-Engine Bolt And Transmission Cooler Tube Support Bracket
Courtesy of FORD MOTOR CO.

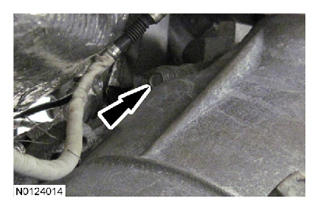

Remove the lower transmission-to-engine bolt.

Fig 24: Locating Lower Transmission-To-Engine Bolt
Courtesy of FORD MOTOR CO.

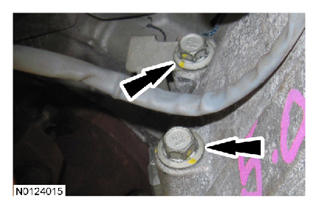

Remove the 2 lower transmission-to-engine bolts.

Fig 25: Locating Lower Transmission-To-Engine Bolts
Courtesy of FORD MOTOR CO.

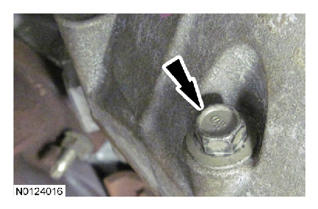

Remove the lower transmission-to-engine bolt.

Fig 26: Locating Lower Transmission-To-Engine Bolt
Courtesy of FORD MOTOR CO.
Remove the drain plug and drain the engine oil.
- Install the drain plug and tighten to 26 Nm (19 lb-ft).

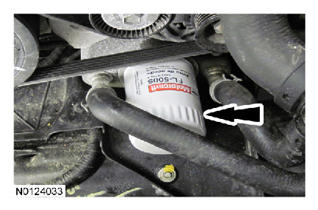

Remove and discard the engine oil filter.

Fig 27: Locating Engine Oil Filter
Courtesy of FORD MOTOR CO.

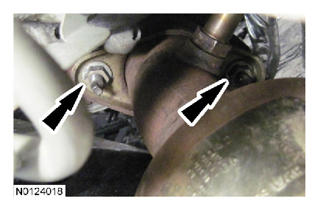

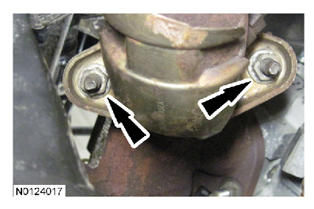

Remove and discard the 2 LH catalytic converter-to-exhaust manifold nuts.

Fig 28: Locating LH Catalytic Converter-To-Exhaust Manifold Nuts
Courtesy of FORD MOTOR CO.
Remove and discard the RH catalytic converter-to-exhaust manifold nut.

Fig 29: Locating RH Catalytic Converter-To-Exhaust Manifold Nut
Courtesy of FORD MOTOR CO.

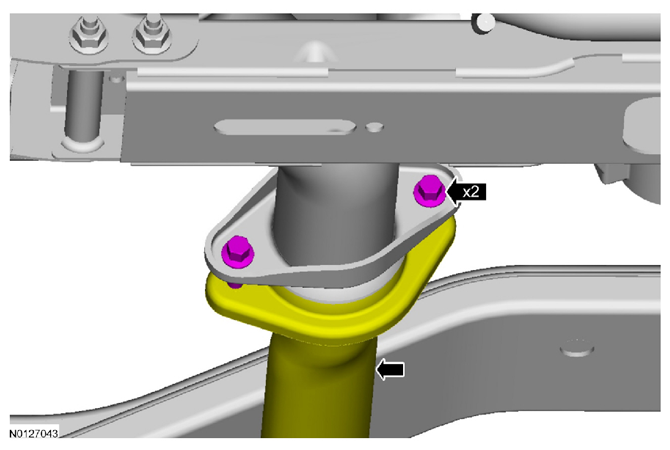

Remove the 2 exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
- Discard the 2 bolts.

  Fig 30: Locating Exhaust Y-Pipe Dual Catalytic Converter-To-Exhaust Intermediate Pipe And Bolts
  Courtesy of FORD MOTOR CO.
NOTE: Only use hand tools when removing the engine support insulator nuts or the engine support insulator may be damaged.

NOTE: If during nut removal the stud is extracted from the engine support insulator, separate the nut from the stud prior to installing the stud.

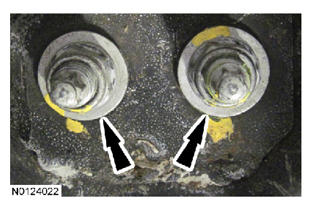

Remove the 2 RH engine support insulator nuts.

Fig 31: Locating RH Engine Support Insulator Nuts
Courtesy of FORD MOTOR CO.

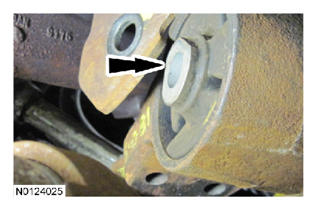

NOTE: Only use hand tools when removing the engine support insulator stud or the engine support insulator may be damaged.

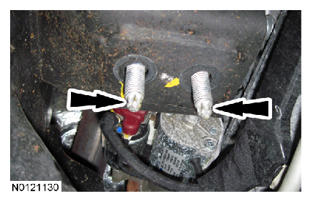

Remove the 2 RH engine support insulator studs.

Fig 32: Locating RH Engine Support Insulator Studs
Courtesy of FORD MOTOR CO.
NOTE: Only use hand tools when loosening the engine support insulator through bolt or the engine support insulator may be damaged.

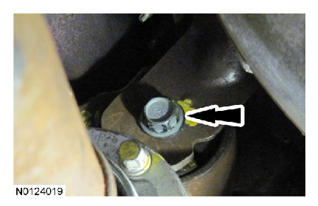

Remove the LH engine support insulator bolt.

Fig 33: Locating LH Engine Support Insulator Bolt
Courtesy of FORD MOTOR CO.

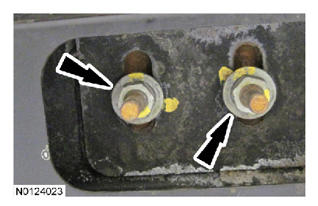

Loosen the 2 transmission mount-to-crossmember nuts.

Fig 34: Locating Transmission Mount-To-Crossmember Nuts
Courtesy of FORD MOTOR CO.

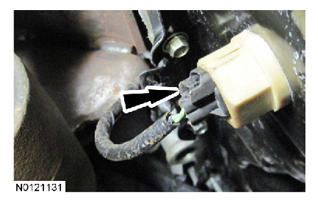

Disconnect the oil level sensor electrical connector.

Fig 35: Locating Oil Level Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

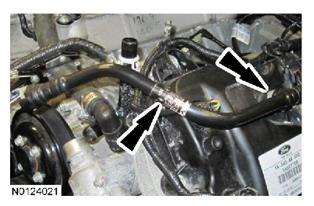

Disconnect the quick connect coupling and remove the crankcase ventilation tube. For additional information, refer to FUEL SYSTEM - GENERAL INFORMATION .

Fig 36: Locating Quick Connect Coupling And Crankcase Ventilation Tube
Courtesy of FORD MOTOR CO.
NOTE: Do not support the transmission by the fluid pan, failure to follow this instruction may result in serious damage to the transmission.

Support the bellhousing of the transmission with a suitable floor jack and a block of wood.
NOTE: On Four-Wheel Drive (4WD) vehicles, it may be necessary to reposition the transfer case vent hose to access the bolts.

Remove the upper 2 transmission-to-engine bolts.

Fig 37: Locating Upper Transmission-To-Engine Bolts
Courtesy of FORD MOTOR CO.

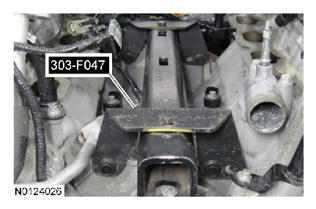

Install the Engine Lifting Bracket.

Fig 38: Identifying Engine Lifting Bracket
Courtesy of FORD MOTOR CO.

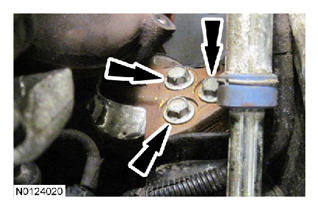

Using the Heavy Duty Floor Crane and the Engine Lifting Bracket, raise the engine assembly to gain access to the 3 LH engine support insulator bolts.

Fig 39: Locating LH Engine Support Insulator Bolts
Courtesy of FORD MOTOR CO.
Remove the LH engine support insulator from under the vehicle.

Fig 40: Locating LH Engine Support Insulator
Courtesy of FORD MOTOR CO.
Using the Heavy Duty Floor Crane and the Engine Lifting Bracket, remove the engine assembly from the vehicle.
