Oil Cooler: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
Remove and discard the engine oil filter.
Using hose clamp pliers, clamp the 2 oil cooler coolant hoses.
- Disconnect the 2 coolant hoses from the oil cooler.

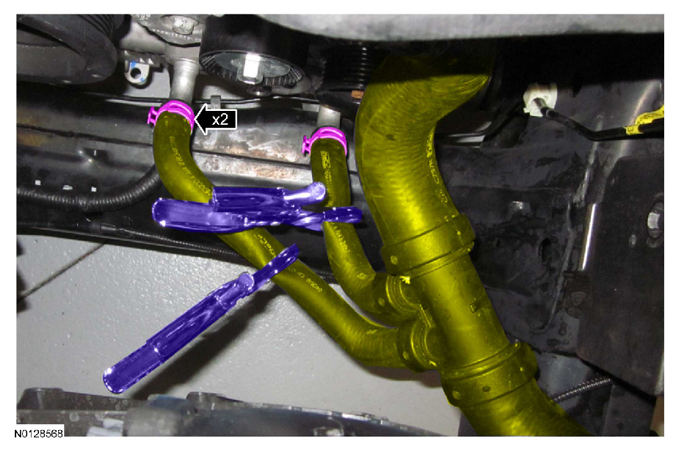

  Fig 1: Clamping Oil Cooler Coolant Hoses Using Hose Clamp Pliers
  Courtesy of FORD MOTOR CO.
NOTE: If metal or aluminum material is present in the oil cooler, mechanical concerns exist. Failure to correct these concerns may cause engine failure. To diagnose mechanical concerns, refer to ENGINE SYSTEM - GENERAL INFORMATION .

Remove the oil cooler threaded insert and the oil cooler.

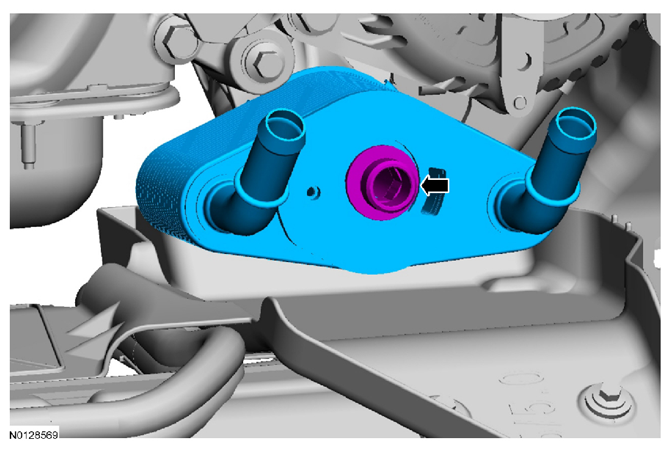

Fig 2: Locating Oil Cooler Threaded Insert In Oil Cooler
Courtesy of FORD MOTOR CO.
