Oil Cooler: Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Install the oil cooler and threaded insert.
- Tighten to 57 Nm (42 lb-ft).

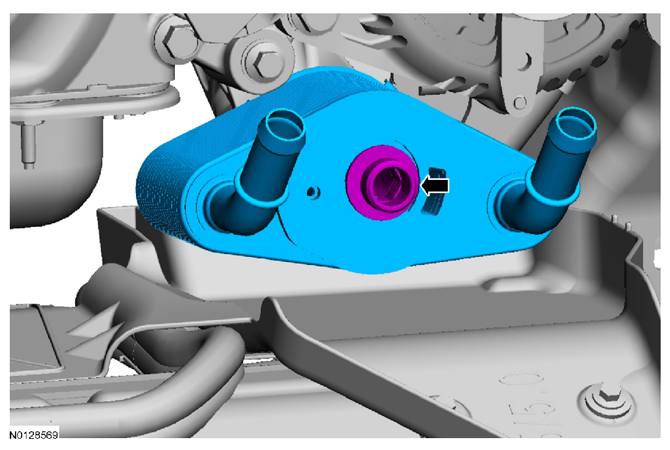

  Fig 1: Locating Oil Cooler Threaded Insert In Oil Cooler
  Courtesy of FORD MOTOR CO.
Connect the 2 coolant hoses.
- Release the hose clamp pliers.

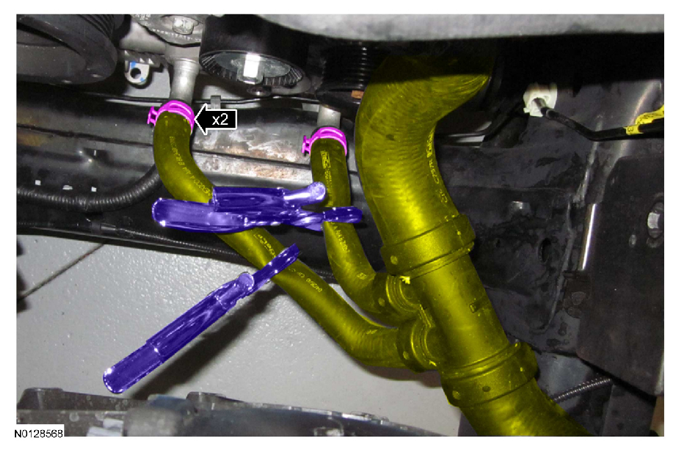

  Fig 2: Clamping Oil Cooler Coolant Hoses Using Hose Clamp Pliers
  Courtesy of FORD MOTOR CO.
NOTE: Do not lubricate the O-ring seal.

Install a new oil filter.
- Tighten to 16 Nm (142 lb-in).
