Engine Support Insulators - RH: Material
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

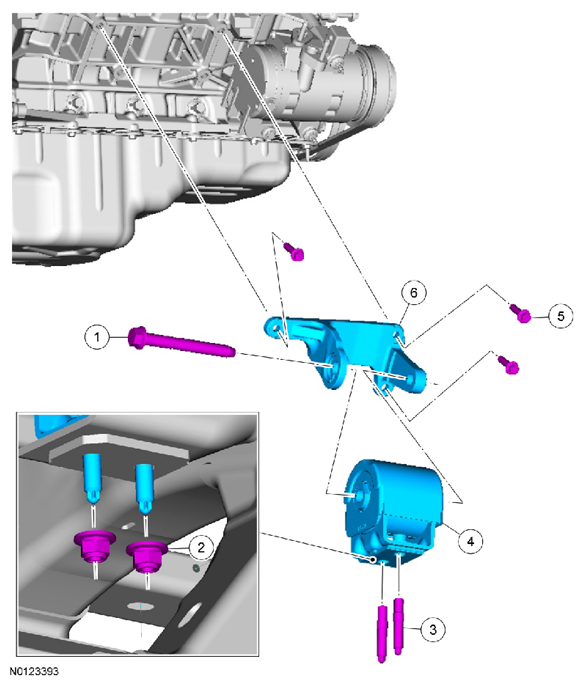

| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH engine support insulator through bolt (part of 6038) - 350 Nm (258 lb-ft) |
| 2 | W707251 | RH engine support insulator nut (2 required) - 175 Nm (129 lb-ft) |
| 3 | - | RH engine support insulator stud (part of 6038) (2 required) - 15 Nm (133 lb-in) |
| 4 | 6038 | RH engine support insulator |
| 5 | W714735 | RH engine support insulator bracket bolt (3 required) - 63 Nm (46 lb-ft) |
| 6 | - | RH engine support insulator bracket (part of 6038) |
