Engine Support Insulators - LH: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Apply threadlock to the LH and RH engine support insulator through bolt threads prior to installation.

All vehicles

  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the 4 pin-type retainers and the upper radiator air deflector.

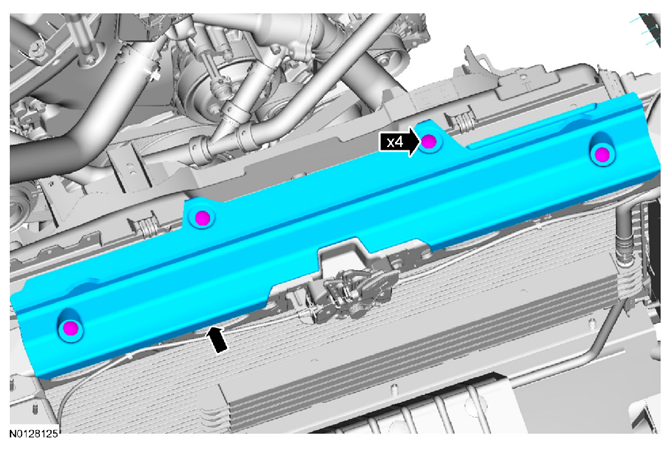

    Fig 1: Locating Upper Radiator Air Deflector And Pin-Type Retainers
    G08338754Courtesy of FORD MOTOR CO.
  3. Remove the Air Cleaner (ACL) outlet pipe and ACL cover as an assembly. For additional information, refer to INTAKE AIR DISTRIBUTION SYSTEM & INTAKE AIR FILTERING SYSTEM .
  4. NOTE: It may be necessary to install washers between the Engine Lifting Bracket and the cylinder head to prevent the Engine Lifting Bracket from contacting the valve cover while supporting the engine.

    Install an Engine Lifting Bracket on the side of the LH cylinder head.

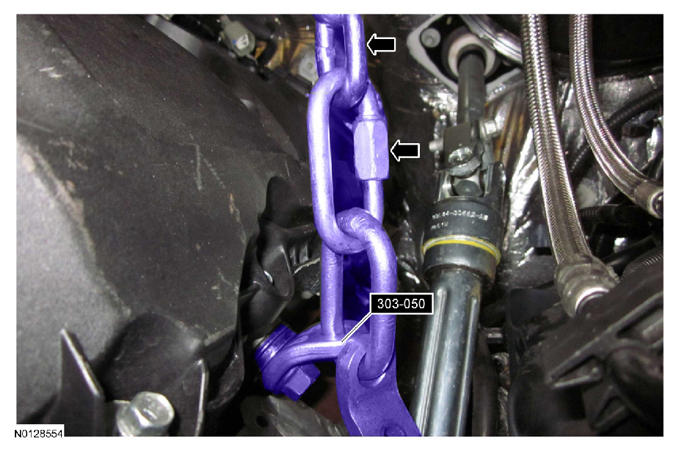

    • Attach a length of chain and a connecting link to the Engine Lifting Bracket.
      Fig 2: Installing Engine Lifting Bracket Using Chain And Connecting Link
      G08338755Courtesy of FORD MOTOR CO.
  5. Install the Engine Support Bar.
    • Attach the chain installed in the previous step to the Engine Support Bar hook to support the engine.

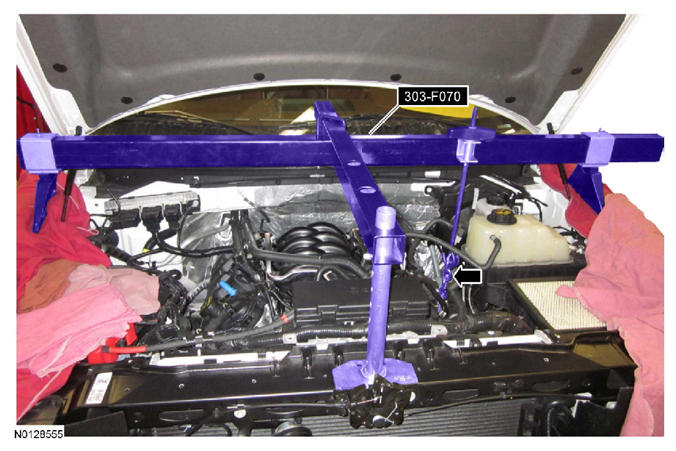

      Fig 3: Installing Engine Support Bar
      G08338756Courtesy of FORD MOTOR CO.
  6. Remove the 2 exhaust Y-pipe dual catalytic converter-to-exhaust intermediate pipe bolts and separate.
    • Discard the 2 bolts.

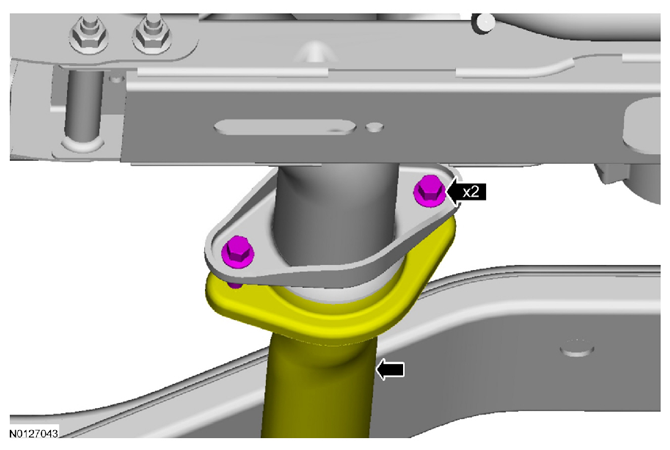

      Fig 4: Locating Exhaust Y-Pipe Dual Catalytic Converter-To-Exhaust Intermediate Pipe And Bolts
      G08338757Courtesy of FORD MOTOR CO.
  7. NOTE: Only use hand tools when removing the transmission mount-to-crossmember nuts or damage to the transmission mount can occur.

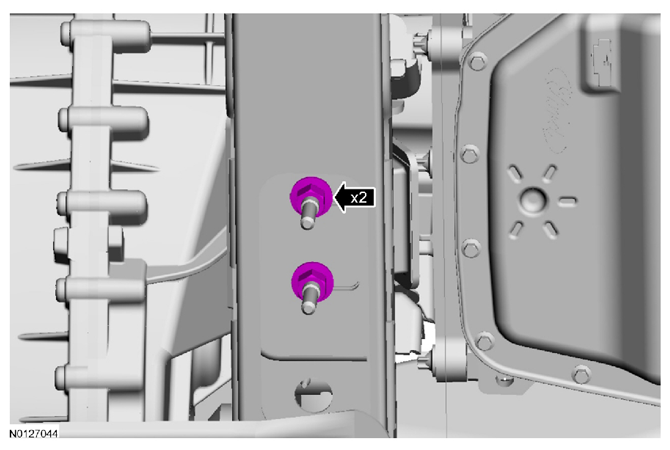

    Loosen the 2 transmission mount-to-crossmember nuts.

    Fig 5: Locating Transmission Mount-To-Crossmember Nuts
    G08338758Courtesy of FORD MOTOR CO.
  8. Remove the starter. For additional information, refer to STARTING SYSTEM .
  9. If equipped, remove the front driveshaft. For additional information, refer to DRIVESHAFT .
  10. NOTE: Only use hand tools when loosening or tightening the engine support insulator through bolts or damage to the engine support insulator-to-cylinder block bracket can occur.

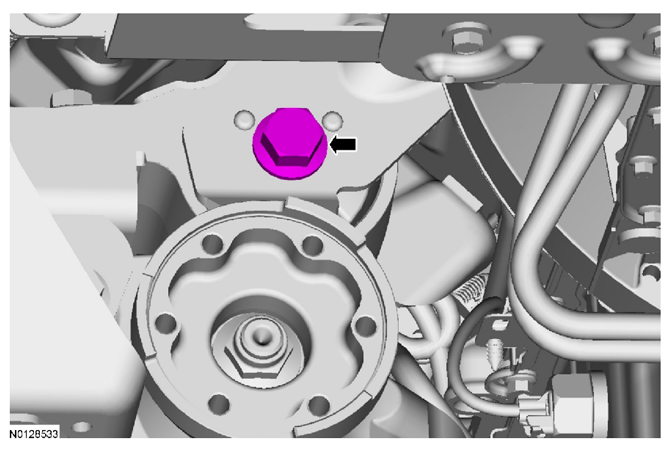

    Remove the LH engine support insulator through bolt.

    Fig 6: Locating LH Engine Support Insulator Bolt
    G08338759Courtesy of FORD MOTOR CO.
  11. NOTE: Only use hand tools when loosening or tightening the engine support insulator through bolts or damage to the engine support insulator-to cylinder block bracket can occur.

    Loosen the RH engine support insulator through bolt.

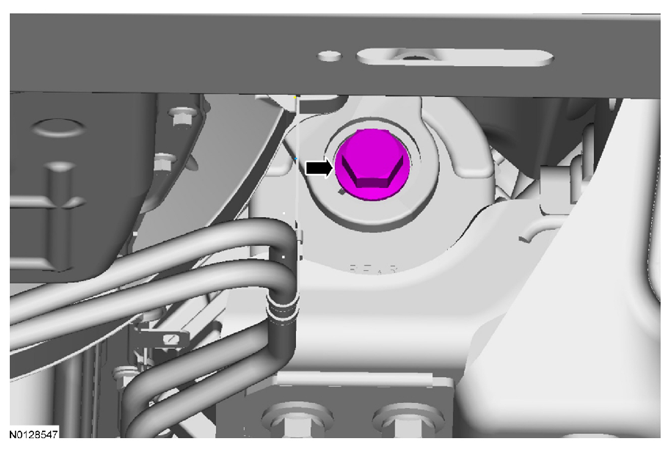

    Fig 7: Locating RH Engine Support Insulator Through Bolt
    G08338760Courtesy of FORD MOTOR CO.
  12. Raise the LH side of the engine 50 mm (1.968 in).
  13. NOTE: Only use hand tools when removing or installing the engine support insulator-to-frame bolts or damage to the engine support insulator-to-frame nut plate can occur.

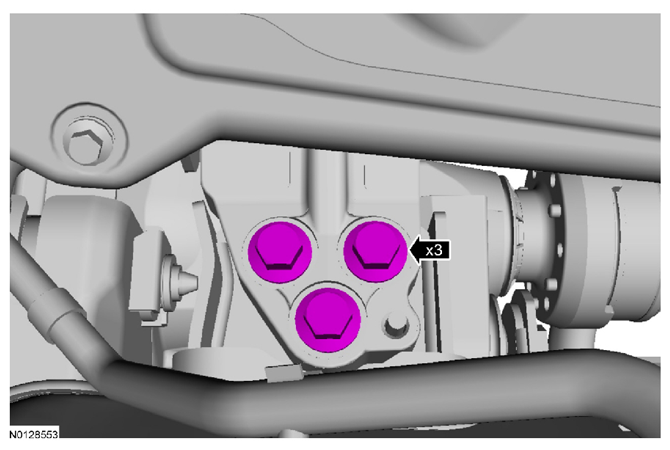

    Remove the 3 LH engine support insulator-to-frame bolts.

    Fig 8: Locating LH Engine Support Insulator-To-Frame Bolts
    G08338761Courtesy of FORD MOTOR CO.

    Four-Wheel Drive (4WD) vehicles

  14. Position a suitable hydraulic jack under the front axle. Securely strap the jack to the axle.

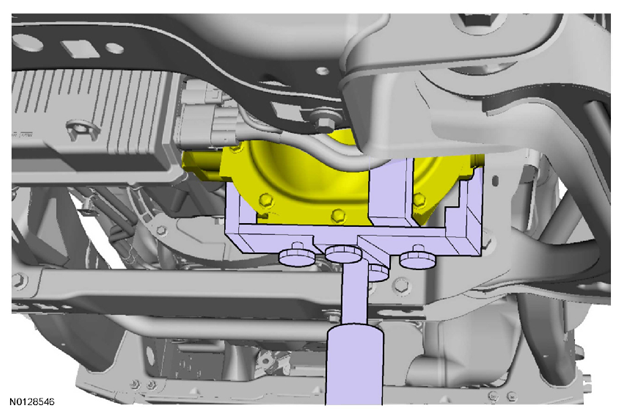

    Fig 9: Positioning Hydraulic Jack Under Front Axle
    G08338762Courtesy of FORD MOTOR CO.

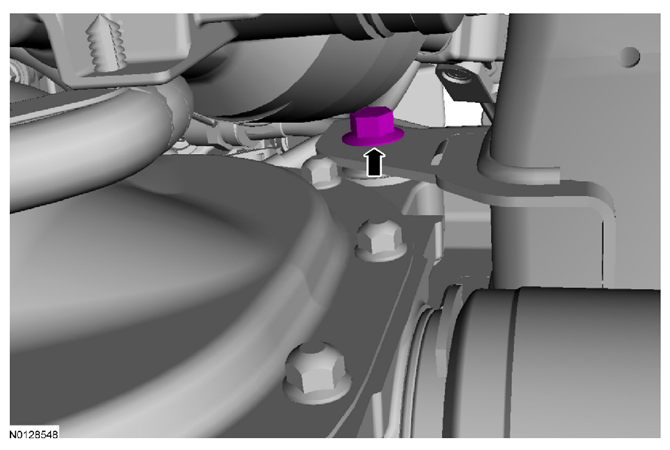

  15. Remove the upper front axle carrier mounting bushing bolt.
    Fig 10: Locating Upper Front Axle Carrier Mounting Bushing Bolt
    G08338763Courtesy of FORD MOTOR CO.

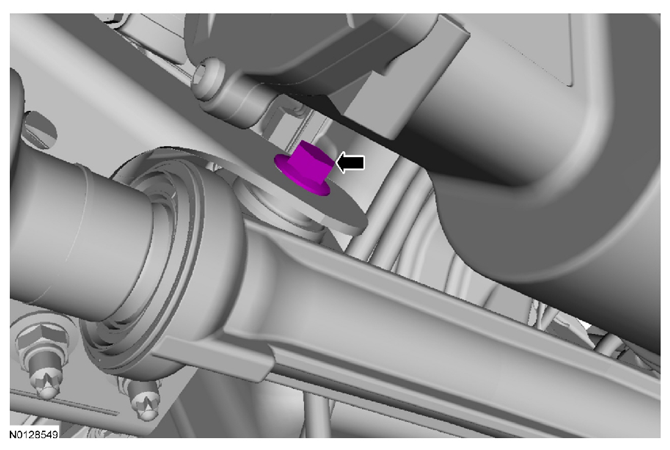

  16. Remove the axle shaft housing carrier bushing bolt.
    Fig 11: Locating Axle Shaft Housing Carrier Bushing Bolt
    G08338764Courtesy of FORD MOTOR CO.
  17. Remove the lower front axle carrier mounting bushing bolt.

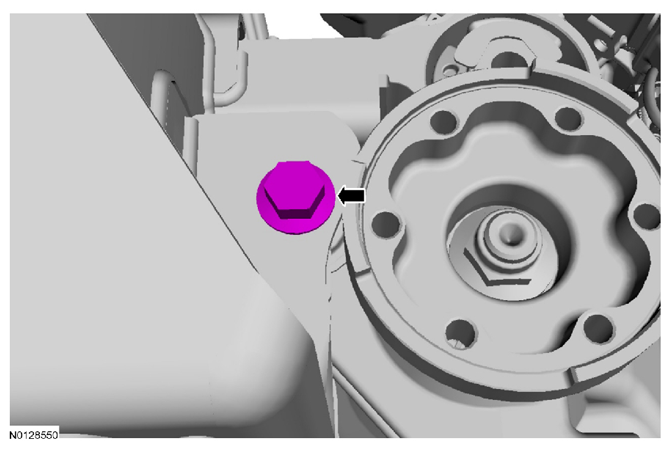

    Fig 12: Locating Lower Front Axle Carrier Mounting Bushing Bolt
    G08338765Courtesy of FORD MOTOR CO.
  18. NOTE: Use care when positioning the front axle housing or the vacuum lines to the axle solenoid may become disconnected or damaged.

    Lower the front axle to allow clearance to the LH engine support insulator.

    All vehicles

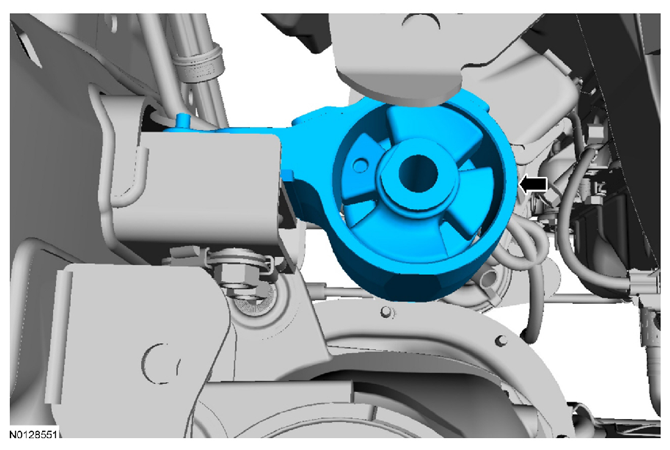

  19. Remove the LH engine support insulator.
    Fig 13: Locating LH Engine Support Insulator
    G08338766Courtesy of FORD MOTOR CO.
  20. Inspect the engine support insulator-to-frame nut plate for thread damage. If the nut plate is damaged, bend 2 tabs back and remove the nut plate. Replace the nut plate with service part number 56190 and bend the 2 tabs back to the original position.
    Fig 14: Removing Engine Support Insulator-To-Frame Nut Plate
    G08338767Courtesy of FORD MOTOR CO.

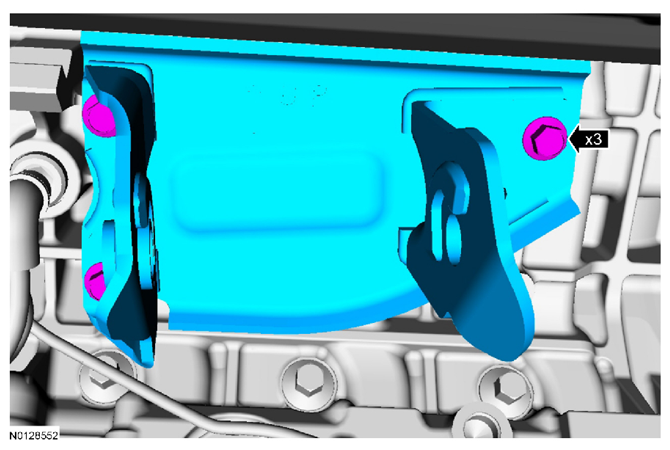

  21. If necessary, remove the 3 bolts and the LH engine support insulator-to-cylinder block bracket.
    Fig 15: Locating LH Engine Support Insulator-To-Cylinder Block Bracket Bolts
    G08338768Courtesy of FORD MOTOR CO.
