Engine Support Insulators - LH: Material
WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Specification |
|---|---|
| Threadlock 262 TA-26 |
WSK-M2G351-A6 |

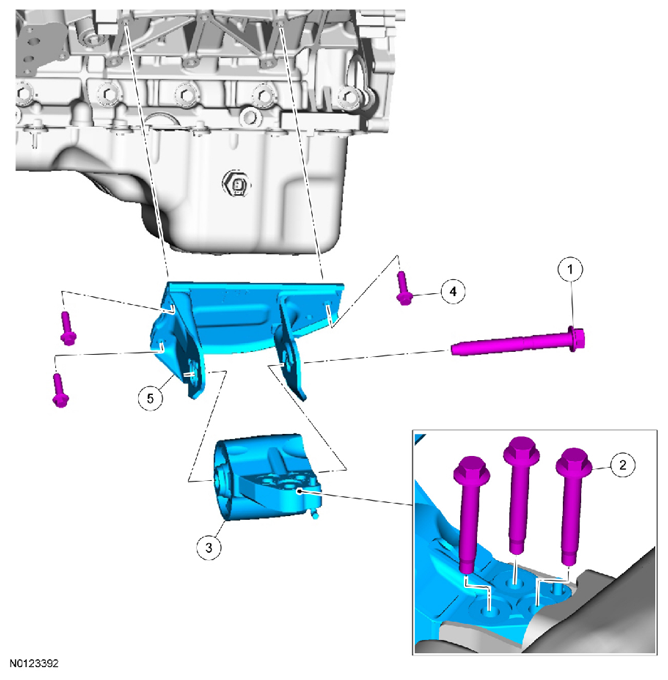

| Item | Part Number | Description |
|---|---|---|
| 1 | W715211 | LH engine support insulator through bolt - 350 Nm (258 lb-ft) |
| 2 | W713244 | LH engine support insulator bolt (3 required) |
| 3 | 6038 | LH engine support insulator |
| 4 | W714735 | LH engine support insulator bracket bolt (3 required) - 63 Nm (46 lb-ft) |
| 5 | - | LH engine support insulator bracket (part of 6038) |
