Crankshaft Rear Seal with Retainer Plate: Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Do not use metal scrapers, wire brushes, power abrasive discs or other abrasive means to clean the sealing surfaces. These tools cause scratches and gouges which make leak paths. Use a plastic scraping tool to remove all traces of old sealant.

NOTE: Clean the sealing surfaces with silicone gasket remover and metal surface prep. Follow the directions on the packaging.

Clean and inspect the mating surface.
NOTE: If the rear crankshaft seal retaining plate is not secured within 4 minutes, the sealant must be removed and the sealing area cleaned with silicone gasket remover and metal surface prep. Follow the directions on the packaging. Allow to dry until there is no sign of wetness, or 5 minutes, whichever is longer. Failure to follow this procedure may cause future oil leaks.

Apply a 3.75 mm (0.147 in) bead of silicone sealant to the rear crankshaft seal retainer mating surface on the engine block.

Fig 1: Applying Silicone Gasket And Sealant -to- Rear Crankshaft Seal Retainer Mating Surface
Courtesy of FORD MOTOR CO.
Install the crankshaft rear seal retainer plate and the 6 bolts, tighten in the sequence shown in illustration in 2 stages.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 45 degrees.

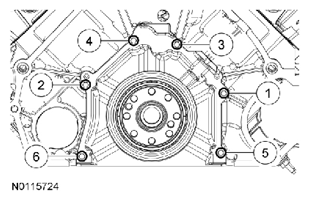

  Fig 2: Identifying Crankshaft Rear Seal Retainer Plate Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
NOTE: Lubricate the seal lips and bore with clean engine oil prior to installation.

Position the Rear Main Seal Installer onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.

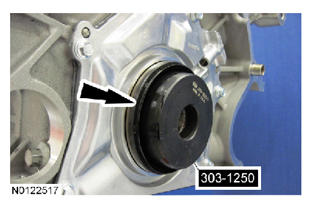

Fig 3: Locating Crankshaft Rear Seal Onto Rear Main Seal Installer
Courtesy of FORD MOTOR CO.
Using the Rear Main Seal Installer and Handle, install the new crankshaft rear seal.

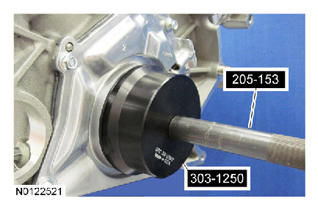

Fig 4: Installing Crankshaft Rear Seal Using Rear Main Seal Installer And Handle
Courtesy of FORD MOTOR CO.
NOTE: The Crankshaft Position (CKP) sensor must be positioned into the fitting on the crankshaft rear seal retainer plate and be flush against the boss on the engine block before the bolt is installed. If the CKP sensor is installed incorrectly, the CKP sensor can be damaged.

Position the CKP sensor and install the bolt.
- Tighten to 10 Nm (89 lb-in).

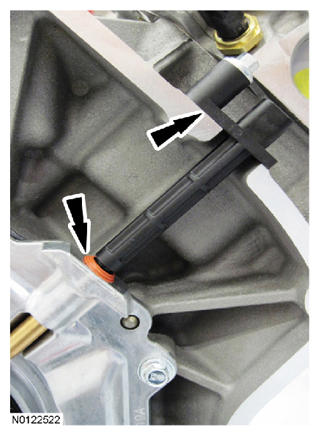

  Fig 5: Locating CKP Sensor And Bolt
  Courtesy of FORD MOTOR CO.
Connect the CKP sensor electrical connector.
Install the oil pan. For additional information, refer to ENGINE LUBRICATION COMPONENTS - EXPLODED VIEW and OIL PAN .
Install the crankshaft sensor ring.
Install the engine separator plate.
Install the flexplate. For additional information, refer to FLEXPLATE OR FLYWHEEL AND CRANKSHAFT REAR SEAL - EXPLODED VIEW and FLEXPLATE .
