Camshaft - LH: Installation

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Lubricate the camshafts with clean engine oil prior to installation.

Install the LH intake and exhaust camshafts in the neutral position. Align the D-slots as shown in the illustration.

Fig 1: Locating LH Intake And Exhaust Camshafts D-Slots
Courtesy of FORD MOTOR CO.
Install the 8 camshaft bearing caps and the 16 bolts. Do not tighten the bolts at this time.
Install the LH front camshaft bearing mega cap and the 4 bolts. Do not tighten the bolts at this time

Fig 2: Locating Bolts And LH Front Camshaft Bearing Mega Cap
Courtesy of FORD MOTOR CO.
Tighten the bolts in the sequence shown in illustration in 2 stages.
- Stage 1: Tighten to 6 Nm (53 lb-in).
- Stage 2: Tighten an additional 45 degrees.

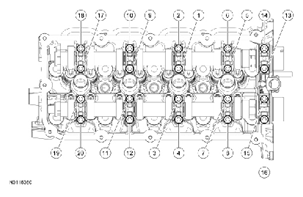

  Fig 3: Identifying Camshaft Bearing Bolts Tightening Sequence
  Courtesy of FORD MOTOR CO.
NOTE: Intake camshaft shown in illustration, exhaust camshaft similar.

Install the VCT system oil filter in the intake and exhaust camshafts.

Fig 4: Installing VCT System Oil Filter In Intake And Exhaust Camshafts
Courtesy of FORD MOTOR CO.
Install the secondary timing chain onto the LH VCT assemblies. Align the colored links on the secondary timing chain with the timing marks on the VCT assemblies as shown in the illustration.
1. The timing mark on the intake VCT assembly should align between the 2 consecutive colored links.
2. The timing mark on the exhaust VCT assembly should align with the single colored link.

  Fig 5: Identifying Timing Marks On Intake And Exhaust VCT Assembly
  Courtesy of FORD MOTOR CO.
Install the LH VCT assemblies and the secondary timing chain onto the LH camshafts to a position 2 mm (0.078 in) from fully seated. The timing mark on the exhaust VCT assembly should be in the 11 o'clock position.

Fig 6: Locating Timing Mark On Exhaust VCT Assembly In 11 O'Clock Position
Courtesy of FORD MOTOR CO.
NOTE: It may be necessary to rotate the exhaust camshaft slightly (using a wrench on the flats of the camshaft) to seat the VCT assemblies onto the camshafts.

Rotate the secondary timing chain tensioner 90 degrees so the ramped area is facing forward and fully seat the VCT assemblies onto the camshafts.
- If the secondary timing chain is not centered over the tensioner, reposition the VCT assemblies until they are fully seated on the camshafts.

  Fig 7: Rotating Secondary Timing Chain Tensioner
  Courtesy of FORD MOTOR CO.
NOTE: Use a wrench on the flats of the camshaft to hold the camshafts while tightening the VCT assembly bolts.

Install the 3 LH intake VCT assembly bolts and the 3 LH exhaust VCT assembly bolts.
- Tighten to 15 Nm (133 lb-in) plus an additional 90 degrees.

  Fig 8: Locating LH Intake And Exhaust Variable Camshaft Timing Assembly Bolts
  Courtesy of FORD MOTOR CO.
Install the LH primary timing chain.
- Align the colored link on the timing chain with the timing mark on the LH VCT assembly.

  Fig 9: Locating Aligned Colored Link On Timing Chain With Timing Mark On LH VCT Assembly
  Courtesy of FORD MOTOR CO.
Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.

Fig 10: Locating Aligned Colored Link On Timing Chain With Timing Mark On Crankshaft Sprocket
Courtesy of FORD MOTOR CO.
NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain guide. Return the crankshaft keyway to the 9 o'clock position after installing the LH timing chain guide.

Install the LH timing chain guide and bolt.
- Tighten to 10 Nm (89 lb-in).

  Fig 11: Locating Bolt And LH Timing Chain Guide
  Courtesy of FORD MOTOR CO.
NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the LH timing chain tensioner arm. Return the crankshaft keyway to the 9 o'clock position after installing the LH timing chain tensioner arm.

Install the LH timing chain tensioner arm.

Fig 12: Locating LH Timing Chain Tensioner Arm
Courtesy of FORD MOTOR CO.

NOTE: Complete the following 3 steps on both the LH and RH primary timing chain tensioners.
NOTE: Do not compress the ratchet assembly or damage to the tensioner will occur.

Compress the primary timing chain tensioner plunger, using an edge of a vise.

Fig 13: Compressing Primary Timing Chain Tensioner Plunger Using Edge Of Vise
Courtesy of FORD MOTOR CO.
Using a small screwdriver or pick, push back and hold the ratchet mechanism, then push the ratchet arm back into the tensioner housing.

Fig 14: Pushing Ratchet Arm Back Into Tensioner Housing Using Small Screwdriver Or Pick
Courtesy of FORD MOTOR CO.
Install a suitable pin into the hole of the tensioner housing to hold the ratchet assembly and plunger in place during installation.

Fig 15: Locating Pin Inserted Into Hole Of Tensioner Housing
Courtesy of FORD MOTOR CO.
Install the LH primary timing chain tensioner and 2 bolts.
- Tighten to 10 Nm (89 lb-in).
- Remove the holding pin from the tensioner.

  Fig 16: Locating LH Primary Timing Chain Tensioner, Bolts And Holding Pin
  Courtesy of FORD MOTOR CO.
Using the crankshaft holding tool, rotate the crankshaft clockwise until the crankshaft keyway is at the 12 o'clock position.

Fig 17: Rotating Crankshaft Clockwise (Till Crankshaft Keyway At 12 O'Clock Position)
Courtesy of FORD MOTOR CO.
Install the RH primary timing chain.
- Align the colored link on the timing chain with the timing mark on the RH VCT assembly.

  Fig 18: Locating Aligned Colored Link On Timing Chain With Timing Mark On RH VCT Assembly
  Courtesy of FORD MOTOR CO.
Align the remaining colored link on the timing chain with the timing mark on the crankshaft sprocket.

Fig 19: Locating Aligned Colored Link On Timing Chain With Timing Mark On Crankshaft Sprocket
Courtesy of FORD MOTOR CO.
NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the RH timing chain guide. Return the crankshaft keyway to the 12 o'clock position after installing the RH timing chain guide.

Install the RH timing chain guide and bolt.
- Tighten to 10 Nm (89 lb-in).

  Fig 20: Locating Bolt And RH Timing Chain Guide
  Courtesy of FORD MOTOR CO.
NOTE: It may be necessary to rotate the crankshaft slightly to provide enough slack in the chain to install the RH timing chain tensioner arm. Return the crankshaft keyway to the 12 o'clock position after installing the RH timing chain tensioner arm.

Install the RH timing chain tensioner arm.

Fig 21: Locating RH Timing Chain Tensioner Arm
Courtesy of FORD MOTOR CO.
Install the RH primary timing chain tensioner and 2 bolts.
- Tighten to 10 Nm (89 lb-in).
- Remove the holding pin from the tensioner.

  Fig 22: Locating RH Primary Timing Chain Tensioner, Bolts And Holding Pin
  Courtesy of FORD MOTOR CO.
With the crankshaft keyway still at the 12 o'clock position, verify the timing mark alignment is correct.

Fig 23: Locating Timing Mark Correct Alignment
Courtesy of FORD MOTOR CO.
Install the engine front cover. For additional information, refer to ENGINE FRONT COVER .
