Oil Pump: Removal

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces, that enters the oil passages, coolant passages or the oil pan may cause engine failure.
  1. With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
  2. Remove the engine front cover. For additional information, refer to ENGINE FRONT COVER .
  3. Rotate the crankshaft clockwise and align the timing marks on the intake Variable Camshaft Timing (VCT) assemblies as shown.

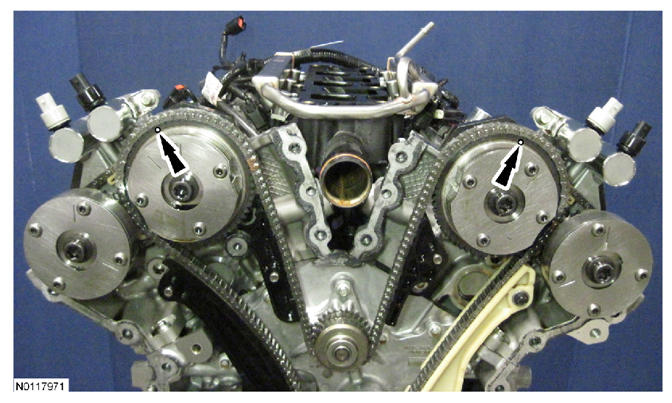

    Fig 1: Locating Timing Marks On Intake Variable Camshaft Timing Assemblies
    G08337792Courtesy of FORD MOTOR CO.
  4. Remove the 3 bolts and the LH valve train oil tube.

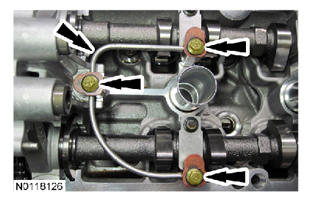

    Fig 2: Locating Bolts And LH Valve Train Oil Tube
    G08337793Courtesy of FORD MOTOR CO.
  5. NOTE: The Camshaft Holding Tool will hold the camshafts in the Top Dead Center (TDC) position.

    Install the Camshaft Holding Tool onto the flats of the LH camshafts.

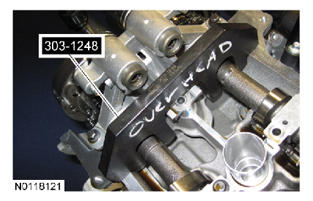

    Fig 3: Installing Camshaft Holding Tool Onto Flats Of LH Camshafts
    G08337794Courtesy of FORD MOTOR CO.
  6. Remove the 3 bolts and the RH valve train oil tube.

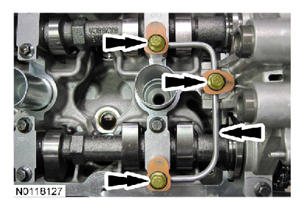

    Fig 4: Locating Bolts And RH Valve Train Oil Tube
    G08337795Courtesy of FORD MOTOR CO.
  7. NOTE: The Camshaft Holding Tool will hold the camshafts in the TDC position.

    Install the Camshaft Holding Tool onto the flats of the RH camshafts.

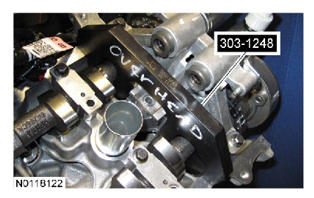

    Fig 5: Installing Camshaft Holding Tool Onto Flats Of RH Camshafts
    G08337796Courtesy of FORD MOTOR CO.
    NOTE: The following 3 steps are for primary timing chains that the colored links are not visible.
  8. Mark the timing chain link that aligns with the timing mark on the LH intake VCT assembly as shown.

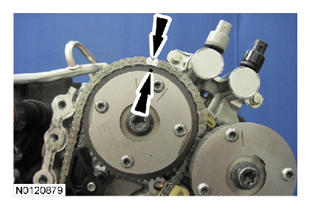

    Fig 6: Locating Timing Mark On LH Intake VCT Assembly And Timing Chain Link
    G08337797Courtesy of FORD MOTOR CO.
  9. Mark the timing chain link that aligns with the timing mark on the RH intake VCT assembly as shown.

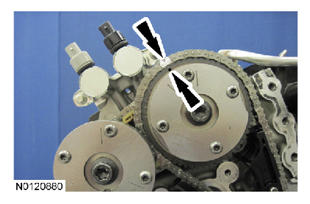

    Fig 7: Locating Timing Mark On RH Intake VCT Assembly And Timing Chain Link
    G08337798Courtesy of FORD MOTOR CO.
  10. NOTE: The crankshaft sprocket timing mark should be between the 2 colored links.

    Mark the 2 timing chain links that align with the timing mark on the crankshaft sprocket as shown.

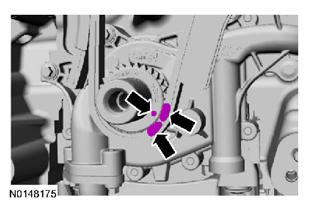

    Fig 8: Locating Timing Mark On Crankshaft Sprocket
    G08337799Courtesy of FORD MOTOR CO.
  11. Remove the 2 bolts and the primary timing chain tensioner.

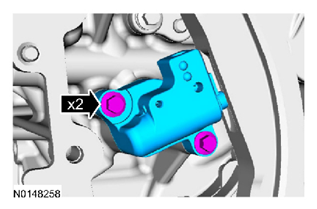

    Fig 9: Locating Primary Timing Chain Tensioner Bolt
    G08337800Courtesy of FORD MOTOR CO.
  12. Remove the primary timing chain tensioner arm.
    Fig 10: Identifying Primary Timing Chain Tensioner Arm
    G08337801Courtesy of FORD MOTOR CO.
  13. Remove the 2 bolts and the lower LH primary timing chain guide.
    Fig 11: Locating Lower LH Primary Timing Chain Guide Bolt
    G08337802Courtesy of FORD MOTOR CO.
  14. NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the bolt and the LH intake VCT oil control solenoid.

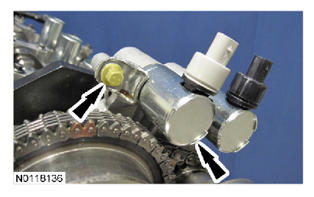

    Fig 12: Locating Bolt And LH Intake VCT Oil Control Solenoid
    G08337803Courtesy of FORD MOTOR CO.
  15. NOTE: Removal of the VCT oil control solenoid will aid in the removal of the primary timing chain.
    NOTE: A slight twisting motion will aid in the removal of the VCT oil control solenoid.
    NOTE: Keep the VCT oil control solenoid clean of dirt and debris.

    Remove the bolt and the RH intake VCT oil control solenoid.

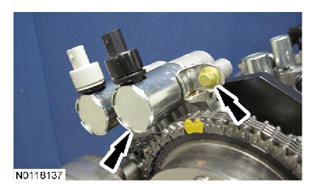

    Fig 13: Locating Bolt And RH Intake VCT Oil Control Solenoid
    G08337804Courtesy of FORD MOTOR CO.
  16. Remove the primary timing chain.

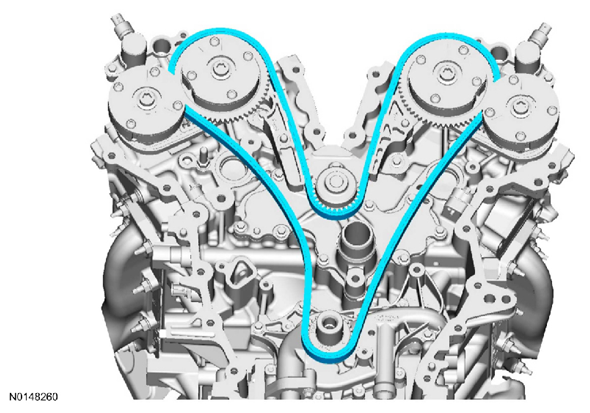

    Fig 14: Identifying Primary Timing Chain
    G08337805Courtesy of FORD MOTOR CO.
  17. Remove the oil pan. For additional information, refer to OIL PAN .
  18. Remove the crankshaft timing chain sprocket.

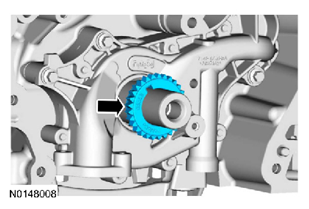

    Fig 15: Locating Crankshaft Timing Chain Sprocket
    G08337806Courtesy of FORD MOTOR CO.
  19. Remove the 3 bolts and the oil pump screen and pickup tube.
    • Discard the O-ring seal.

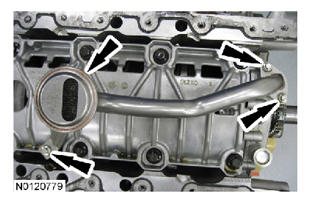

      Fig 16: Locating Oil Pump Screen And Pickup Tube Bolts
      G08337807Courtesy of FORD MOTOR CO.
  20. Remove the 3 bolts and the oil pump.

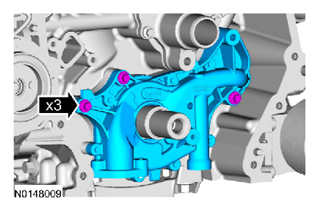

    Fig 17: Locating Oil Pump Bolt
    G08337808Courtesy of FORD MOTOR CO.
