Cylinder Head - RH: Material

WARNING: This page is about a different car, the 2013 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Item	Specification
Motorcraft® SAE 5W-20 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-20 Super Premium Motor Oil (Canada) XO-5W20-QSP (US); CXO-5W20-LSP12 (Canada)	WSS-M2C945-A

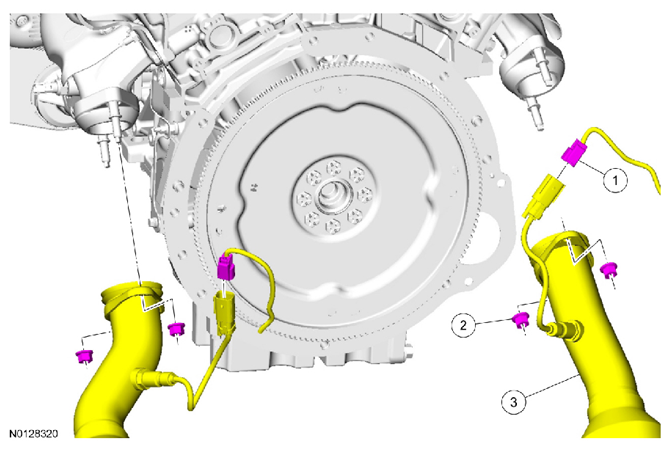

Fig 1: Identifying HO2S Electrical Connector, Catalytic Converter-To-Exhaust Manifold Nuts And Catalytic Converter Assembly

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Heated Oxygen Sensor (HO2S) electrical connector (part of 14A411) (2 required)
2	W714265	Catalytic converter-to-exhaust manifold nuts (4 required) - 45 Nm (35 lb-ft)
3	5F250	Catalytic converter assembly (Y-pipe)

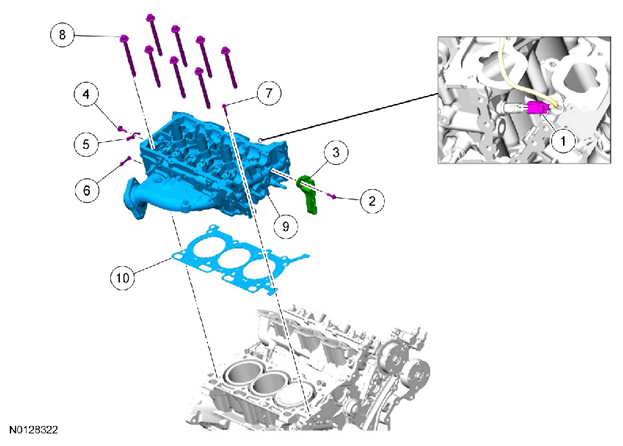

Fig 2: Identifying Cylinder Head Components

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Cylinder Head Temperature (CHT) sensor electrical connector (part of 14A411)
2	W715118	RH primary timing chain guide bolt - 10 Nm (89 lb-in)
3	6K297	RH upper primary timing chain guide
4	W705661	Ground wire bolt - 10 Nm (89 lb-in)
5	19A095	Ground wire
6	-	Wiring harness retainer (part of 15525)
7	W710702	Cylinder head M6 bolt
8	6065	Cylinder head bolt (8 required)
9	6049	Cylinder head
10	6051	Cylinder head gasket
