WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

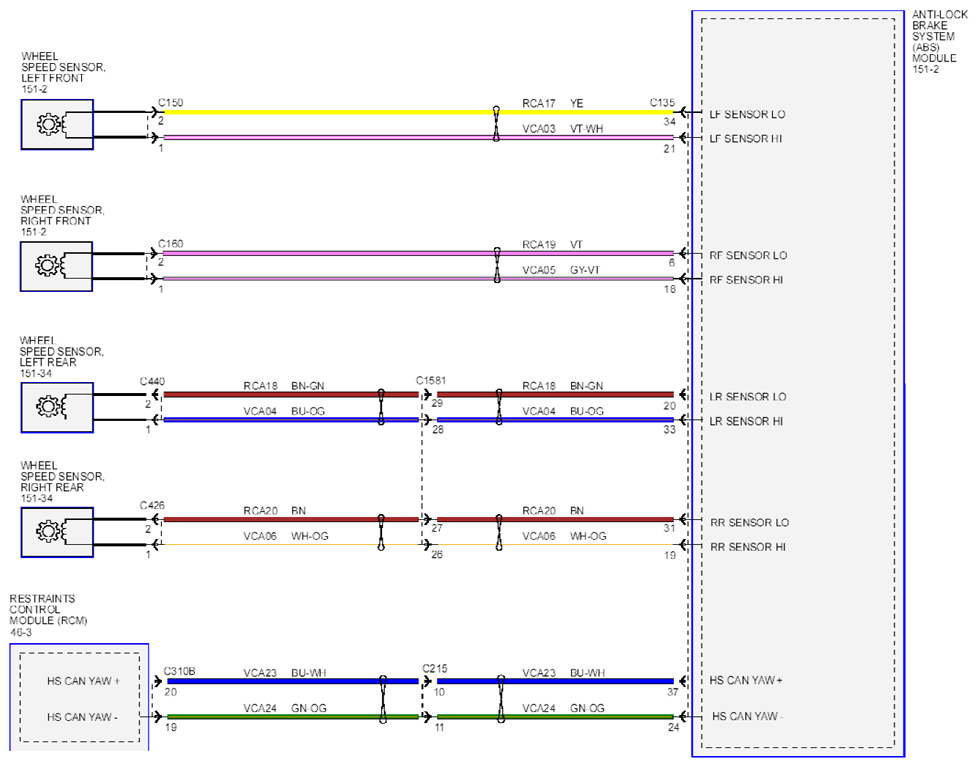

Fig 1: Vehicle Dynamic Systems Circuit Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

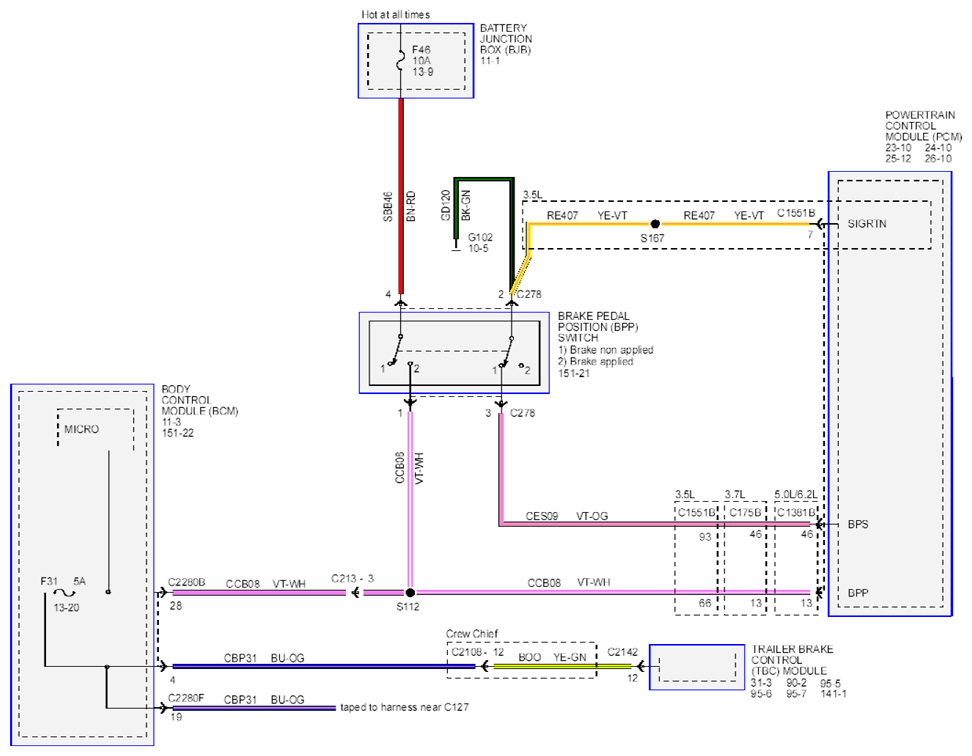

Fig 2: Vehicle Dynamic Systems Circuit Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

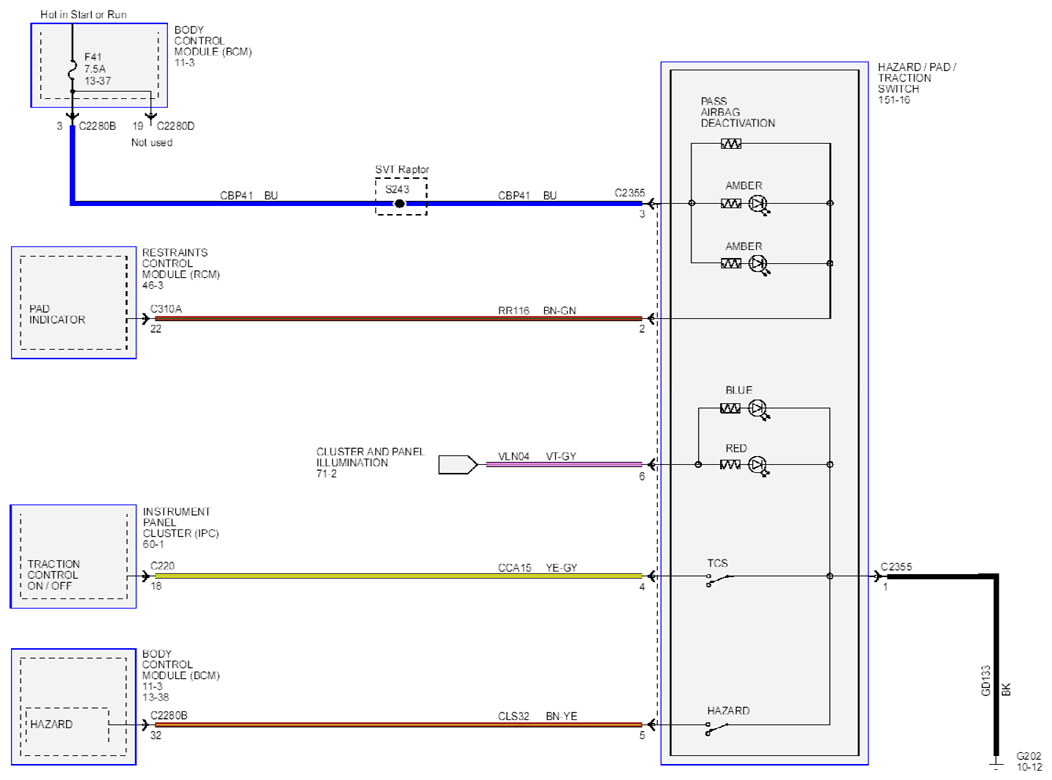

Fig 3: Vehicle Dynamic Systems Circuit Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

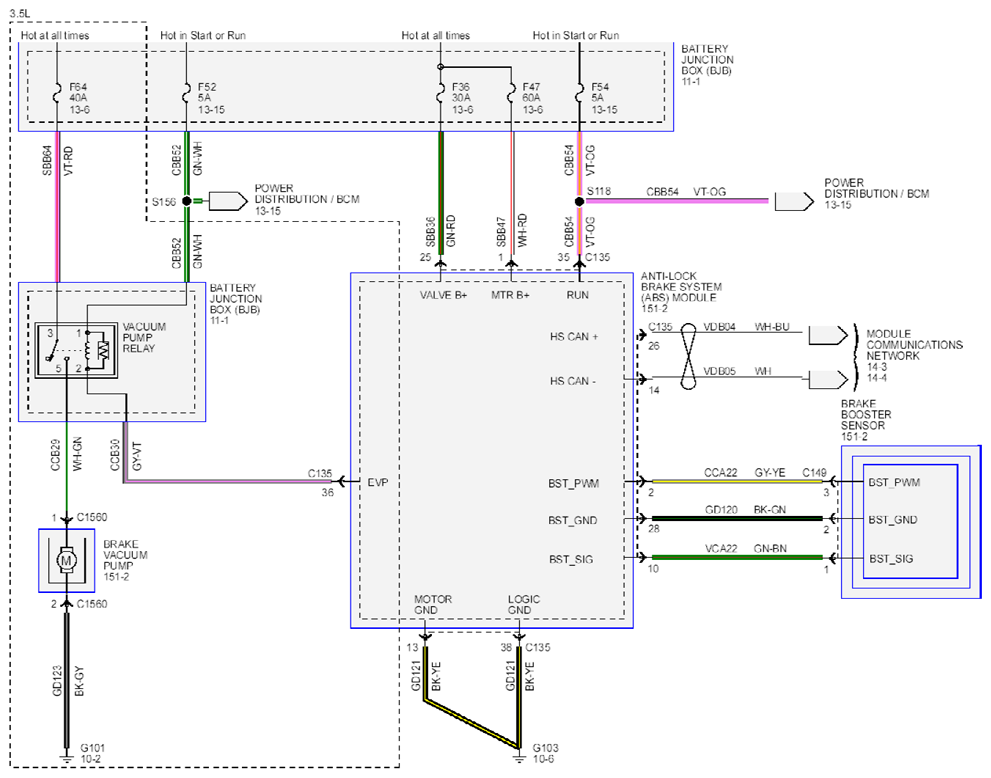

Fig 4: Vehicle Dynamic Systems Circuit Diagram (4 Of 4)
