Transmission Controls - 6R80: 5.0L/6.2L

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

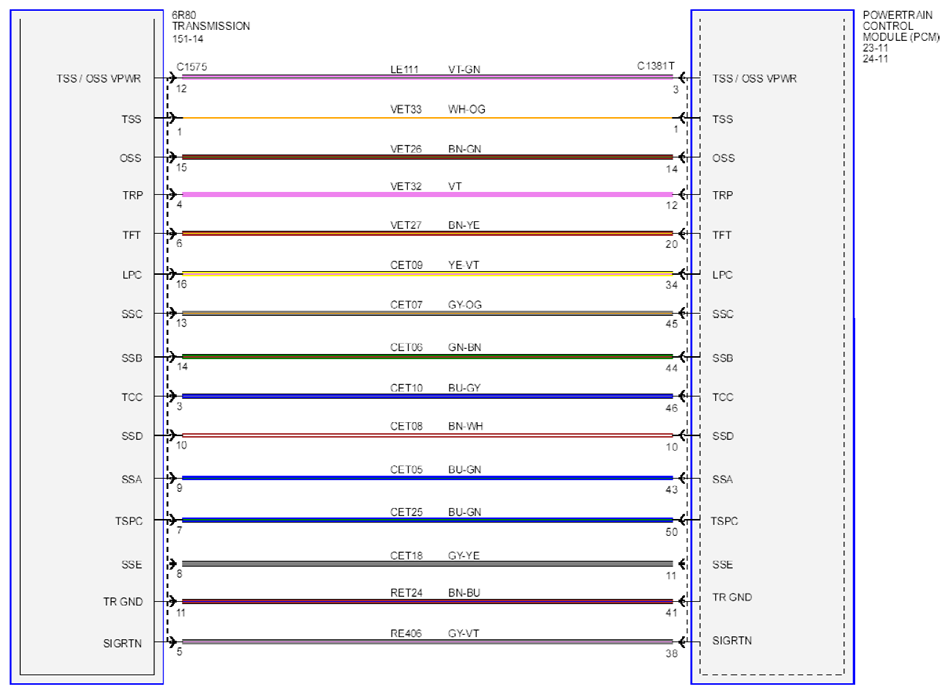

Fig 1: Transmission Controls Circuit Diagram - 5.0L/6.2L (1 Of 2)
G07907128Courtesy of FORD MOTOR CO.

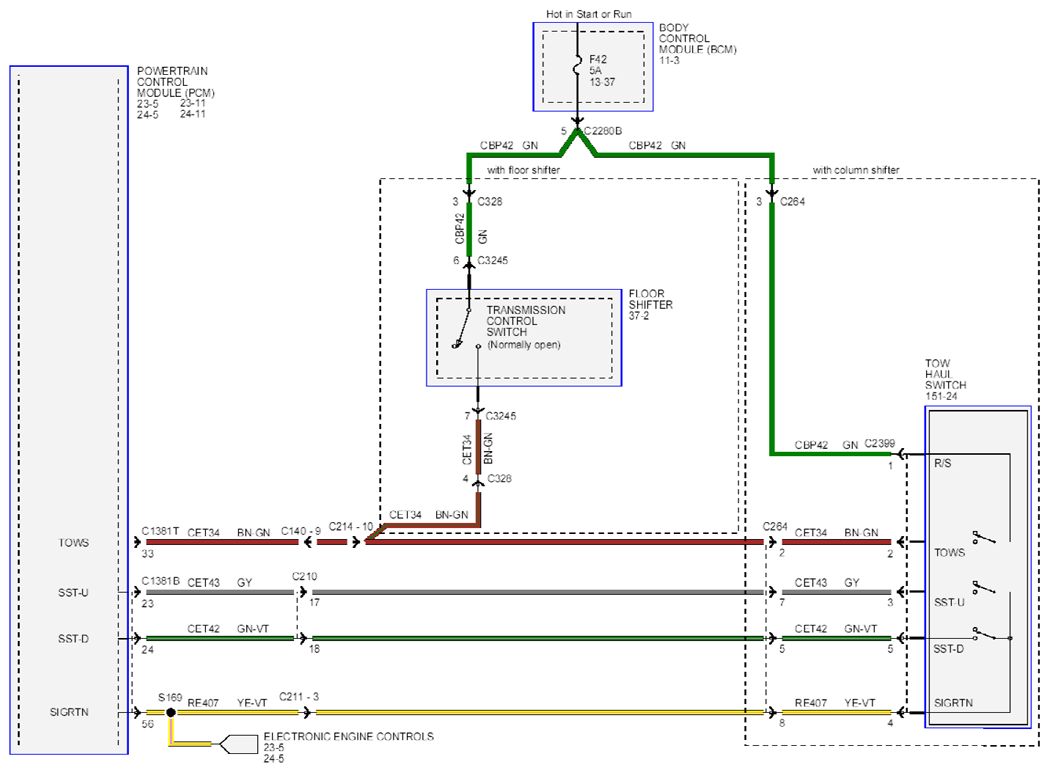

Fig 2: Transmission Controls Circuit Diagram - 5.0L/6.2L (2 Of 2)
G07907129Courtesy of FORD MOTOR CO.
